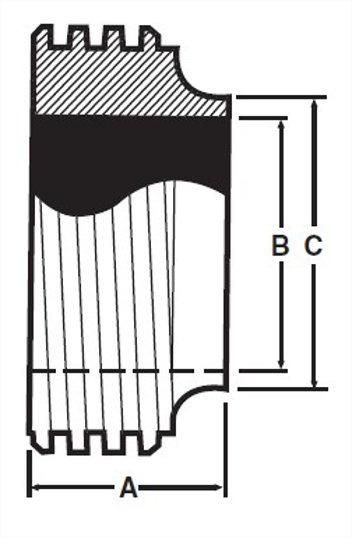

| OD Tube Size | A, in. | A, mm. | B, in. | C, in. | C, mm. | Product Weight |
|---|---|---|---|---|---|---|
| 1 |
|
|
|
|
|
|
| 1.5 |
|
|
|
|
|
|
| 2 |
|
|
|
|
|
|
| 2.5 |
|
|
|
|
|
|
| 3 |
|
|
|
|
|
|
| 4 |
|
|
|
|
|
|
| VNE part number | |
|---|---|
| OD Tube Size | 316L |
| 1 | 15TRJP-6L1.0 |
| 1.5 | 15TRJP-6L1.5 |
| 2 | 15TRJP-6L2.0 |
| 2.5 | 15TRJP-6L2.5 |
| 3 | 15TRJP-6L3.0 |
| 4 | 15TRJP-6L4.0 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 1 |
| Industry Standard | 3A |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Threaded John Perry X Weld |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 0.625 |
| A, mm. | 15.88 |
| B, in. | 0.87 |
| C, in. | 1 |
| C, mm. | 25.4 |
| Product Weight | 0.12 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 1.5 |
| Industry Standard | 3A |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Threaded John Perry X Weld |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 0.625 |
| A, mm. | 15.88 |
| B, in. | 1.37 |
| C, in. | 1.5 |
| C, mm. | 38.1 |
| Product Weight | 0.18 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 2 |
| Industry Standard | 3A |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Threaded John Perry X Weld |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 0.684 |
| A, mm. | 17.37 |
| B, in. | 1.87 |
| C, in. | 2 |
| C, mm. | 50.8 |
| Product Weight | 0.32 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 2.5 |
| Industry Standard | 3A |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Threaded John Perry X Weld |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 0.743 |
| A, mm. | 18.87 |
| B, in. | 2.37 |
| C, in. | 2.5 |
| C, mm. | 63.5 |
| Product Weight | 0.4 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 3 |
| Industry Standard | 3A |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Threaded John Perry X Weld |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 0.806 |
| A, mm. | 20.47 |
| B, in. | 2.87 |
| C, in. | 3 |
| C, mm. | 76.2 |
| Product Weight | 0.58 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 4 |
| Industry Standard | 3A |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Threaded John Perry X Weld |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 0.9 |
| A, mm. | 22.86 |
| B, in. | 3.834 |
| C, in. | 4 |
| C, mm. | 101.6 |
| Product Weight | 1.02 |
