E7HI - Male E-Line X Male E-line X Male E-Line Tee

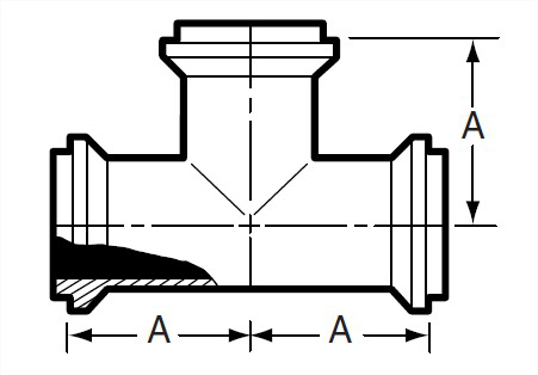

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	1.687	42.85	1
1.5	2.406	61.11	0.86
2	2.812	71.42	1.86
2.5	3.156	80.16	2.62
3	3.5	88.9	3.28
4	4.656	118.26	5.32
6	6.437	163.5	--

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	1.687
A, mm.	42.85
Product Weight	1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	2.406
A, mm.	61.11
Product Weight	0.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	2.812
A, mm.	71.42
Product Weight	1.86

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	3.156
A, mm.	80.16
Product Weight	2.62

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	3.5
A, mm.	88.9
Product Weight	3.28

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	4.656
A, mm.	118.26
Product Weight	5.32

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	6.437
A, mm.	163.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	1.687
A, mm.	42.85
Product Weight	1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	2.406
A, mm.	61.11
Product Weight	0.86

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	2.812
A, mm.	71.42
Product Weight	1.86

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	3.156
A, mm.	80.16
Product Weight	2.62

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	3.5
A, mm.	88.9
Product Weight	3.28

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	4.656
A, mm.	118.26
Product Weight	5.32

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-7HI
Wayland Part Number	W7HI
Dixon Part Number	C7HI
Sanitary Solutions Part Number	SS7HI
Sanitube Part Number	7HI
A, in.	6.437
A, mm.	163.5
