E28WB - Weld End True Y

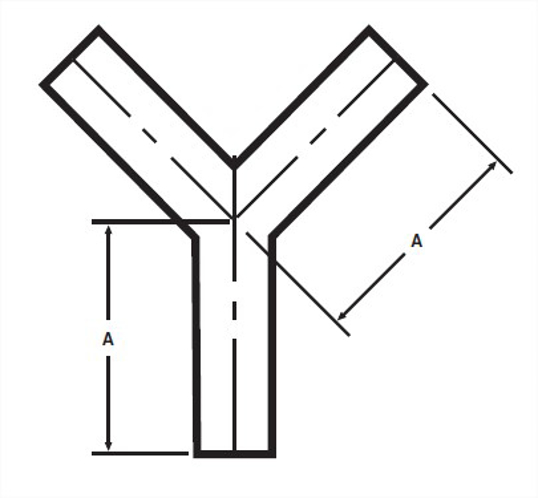

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	T Nom Wall, in.	Product Weight
1	3	76.2	0.065	0.46
1.5	3	76.2	0.065	0.62
2	4	101.6	0.065	1.18
2.5	5	127	0.065	1.78
3	6	152.4	0.065	2.86
4	8	203.2	0.083	6.28
6	8	203.2	0.109	--

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WB1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-1-7-304
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	3
A, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	0.46

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WB1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-1.5-7-304
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	3
A, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	0.62

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WB2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-2-7-304
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	4
A, mm.	101.6
T Nom Wall, in.	0.065
Product Weight	1.18

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WB2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-2.5-7-304
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	5
A, mm.	127
T Nom Wall, in.	0.065
Product Weight	1.78

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WB3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-3-7-304
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	6
A, mm.	152.4
T Nom Wall, in.	0.065
Product Weight	2.86

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WB4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-4-7-304
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	8
A, mm.	203.2
T Nom Wall, in.	0.083
Product Weight	6.28

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WB6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-6-7-304
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	8
A, mm.	203.2
T Nom Wall, in.	0.109

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WB1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-1-7-316
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	3
A, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	0.46

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WB1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-1.5-7-316
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	3
A, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	0.62

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WB2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-2-7-316
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	4
A, mm.	101.6
T Nom Wall, in.	0.065
Product Weight	1.18

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WB2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-2.5-7-316
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	5
A, mm.	127
T Nom Wall, in.	0.065
Product Weight	1.78

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WB3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-3-7-316
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	6
A, mm.	152.4
T Nom Wall, in.	0.065
Product Weight	2.86

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WB4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-4-7-316
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	8
A, mm.	203.2
T Nom Wall, in.	0.083
Product Weight	6.28

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WB6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-6-7-316
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB
A, in.	8
A, mm.	203.2
T Nom Wall, in.	0.109
