E7WCW - Weld X Clamp X Weld Tee

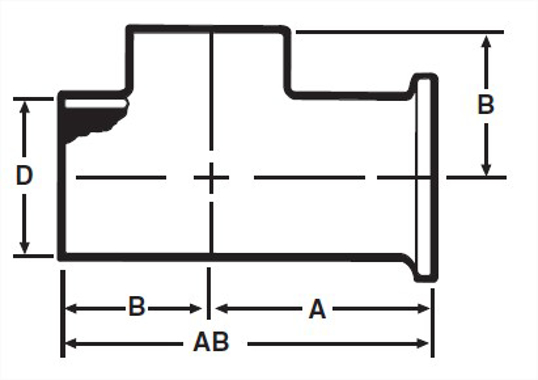

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	T Nom Wall, in.	AB, in.	AB, mm.	Product Weight
1	1.625	41.28	1.125	1	25.4	0.065	2.75	69.85	0.28
1.5	2.156	54.76	1.656	1.5	38.1	0.065	3.812	96.82	0.44
2	2.562	65.07	2.062	2	50.8	0.065	4.625	117.48	0.72
2.5	2.843	72.21	2.343	2.5	63.5	0.065	5.187	131.75	0.9
3	3.093	78.56	2.593	3	76.2	0.065	5.687	144.45	1.26
4	4.25	107.95	3.625	4	101.6	0.083	7.875	200.03	2.74
6	6.5	165.1	5.625	6	152.4	0.109	12.125	307.98	--

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCW1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-1-7-304
A, in.	1.625
A, mm.	41.28
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AB, in.	2.75
AB, mm.	69.85
Product Weight	0.28

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCW1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-1.5-7-304
A, in.	2.156
A, mm.	54.76
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
AB, in.	3.812
AB, mm.	96.82
Product Weight	0.44

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCW2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-2-7-304
A, in.	2.562
A, mm.	65.07
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
AB, in.	4.625
AB, mm.	117.48
Product Weight	0.72

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCW2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-2.5-7-304
A, in.	2.843
A, mm.	72.21
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AB, in.	5.187
AB, mm.	131.75
Product Weight	0.9

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCW3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-3-7-304
A, in.	3.093
A, mm.	78.56
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
AB, in.	5.687
AB, mm.	144.45
Product Weight	1.26

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCW4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-4-7-304
A, in.	4.25
A, mm.	107.95
B, in.	3.625
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
AB, in.	7.875
AB, mm.	200.03
Product Weight	2.74

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCW6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-6-7-304
A, in.	6.5
A, mm.	165.1
B, in.	5.625
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
AB, in.	12.125
AB, mm.	307.98

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCW1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-1-7-316
A, in.	1.625
A, mm.	41.28
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AB, in.	2.75
AB, mm.	69.85
Product Weight	0.28

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCW1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-1.5-7-316
A, in.	2.156
A, mm.	54.76
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
AB, in.	3.812
AB, mm.	96.82
Product Weight	0.44

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCW2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-2-7-316
A, in.	2.562
A, mm.	65.07
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
AB, in.	4.625
AB, mm.	117.48
Product Weight	0.72

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCW2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-2.5-7-316
A, in.	2.843
A, mm.	72.21
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AB, in.	5.187
AB, mm.	131.75

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCW3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-3-7-316
A, in.	3.093
A, mm.	78.56
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
AB, in.	5.687
AB, mm.	144.45
Product Weight	1.26

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCW4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-4-7-316
A, in.	4.25
A, mm.	107.95
B, in.	3.625
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
AB, in.	7.875
AB, mm.	200.03
Product Weight	2.74

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCW6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-6-7-316
A, in.	6.5
A, mm.	165.1
B, in.	5.625
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
AB, in.	12.125
AB, mm.	307.98
