E28AI - Lateral Y with Female E-Line Ends

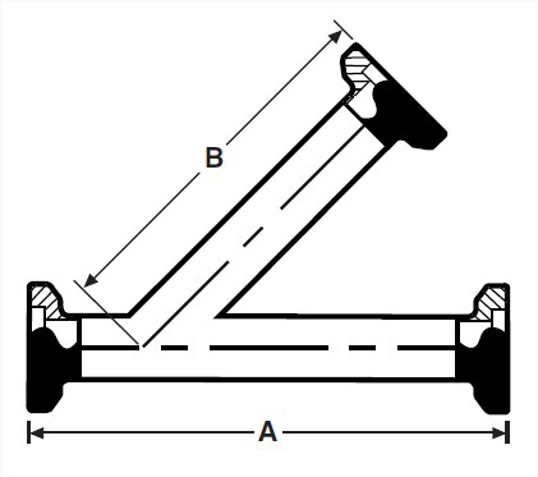

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	7.562	192.07	5.781	1.06
1.5	9.25	234.95	7.125	1.94
2	10.687	271.45	8.156	2.74
2.5	12.437	315.9	9.656	4.26
3	13.187	334.95	10.093	5.36
4	15.5	393.7	12.093	9.87
6	19.125	485.78	15.625	--

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28AI1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	7.562
A, mm.	192.07
B, in.	5.781
Product Weight	1.06

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28AI1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	9.25
A, mm.	234.95
B, in.	7.125
Product Weight	1.94

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28AI2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	10.687
A, mm.	271.45
B, in.	8.156
Product Weight	2.74

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28AI2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	12.437
A, mm.	315.9
B, in.	9.656
Product Weight	4.26

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28AI3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	13.187
A, mm.	334.95
B, in.	10.093
Product Weight	5.36

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28AI4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	15.5
A, mm.	393.7
B, in.	12.093
Product Weight	9.87

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	19.125
A, mm.	485.78
B, in.	15.625

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28AI1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	7.562
A, mm.	192.07
B, in.	5.781
Product Weight	1.06

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28AI1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	9.25
A, mm.	234.95
B, in.	7.125
Product Weight	1.94

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28AI2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	10.687
A, mm.	271.45
B, in.	8.156
Product Weight	2.74

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28AI2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	12.437
A, mm.	315.9
B, in.	9.656
Product Weight	4.26

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28AI3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	13.187
A, mm.	334.95
B, in.	10.093
Product Weight	5.36

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28AI4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	15.5
A, mm.	393.7
B, in.	12.093
Product Weight	9.87

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28AI
Wayland Part Number	W28AI
Dixon Part Number	B28AI
Sanitary Solutions Part Number	SS28AI
Sanitube Part Number	28AI
A, in.	19.125
A, mm.	485.78
B, in.	15.625
