TE2C - BPE Clamp X AWF 90 Degree Elbow Alloy 22 UNS N06022

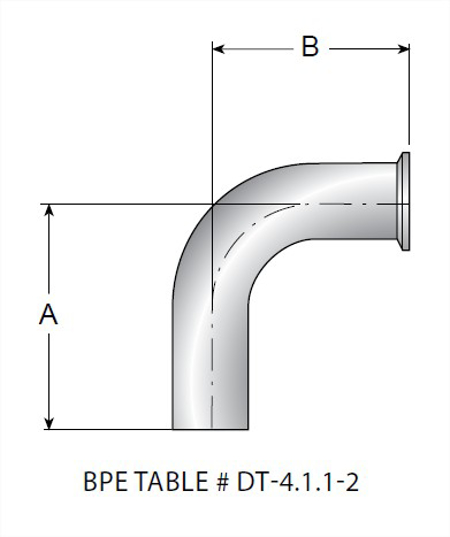

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
0.5	3	76.2	1.625	0.121
0.75	3	76.2	1.625	0.141
1	3	76.2	2	0.385
1.5	3.75	95.25	2.75	0.523
2	4.75	120.65	3.5	0.891
3	6.25	158.75	5	1.766

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD

Size	0.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L.5-...STEP
Catalog File	MaxCore.pdf
A, in.	3
A, mm.	76.2
B, in.	1.625
Product Weight	0.121

Size	0.75
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L.75-...STEP
Catalog File	MaxCore.pdf
A, in.	3
A, mm.	76.2
B, in.	1.625
Product Weight	0.141

Size	1
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L1.0-...STEP
Catalog File	MaxCore.pdf
A, in.	3
A, mm.	76.2
B, in.	2
Product Weight	0.385

Size	1.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L1.5-...STEP
Catalog File	MaxCore.pdf
A, in.	3.75
A, mm.	95.25
B, in.	2.75
Product Weight	0.523

Size	2
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	2
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L2.0-...STEP
Catalog File	MaxCore.pdf
A, in.	4.75
A, mm.	120.65
B, in.	3.5
Product Weight	0.891

Size	3
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	3
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L3.0-...STEP
Catalog File	MaxCore.pdf
A, in.	6.25
A, mm.	158.75
B, in.	5
Product Weight	1.766

Size	0.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L.5-...STEP
Catalog File	MaxCore.pdf
A, in.	3
A, mm.	76.2
B, in.	1.625
Product Weight	0.121

Size	3
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	3
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L3.0-...STEP
Catalog File	MaxCore.pdf
A, in.	6.25
A, mm.	158.75
B, in.	5
Product Weight	1.766

Size	2
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L2.0-...STEP
Catalog File	MaxCore.pdf
A, in.	4.75
A, mm.	120.65
B, in.	3.5
Product Weight	0.891

Size	1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L1.5-...STEP
Catalog File	MaxCore.pdf
A, in.	3.75
A, mm.	95.25
B, in.	2.75
Product Weight	0.523

Size	1
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L1.0-...STEP
Catalog File	MaxCore.pdf
A, in.	3
A, mm.	76.2
B, in.	2
Product Weight	0.385

Size	0.75
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C6L.75-...STEP
Catalog File	MaxCore.pdf
A, in.	3
A, mm.	76.2
B, in.	1.625
Product Weight	0.141
