45C - Clamp End Spring Check Valve

45C - Clamp End Spring Check Valve

Size
Seat Material

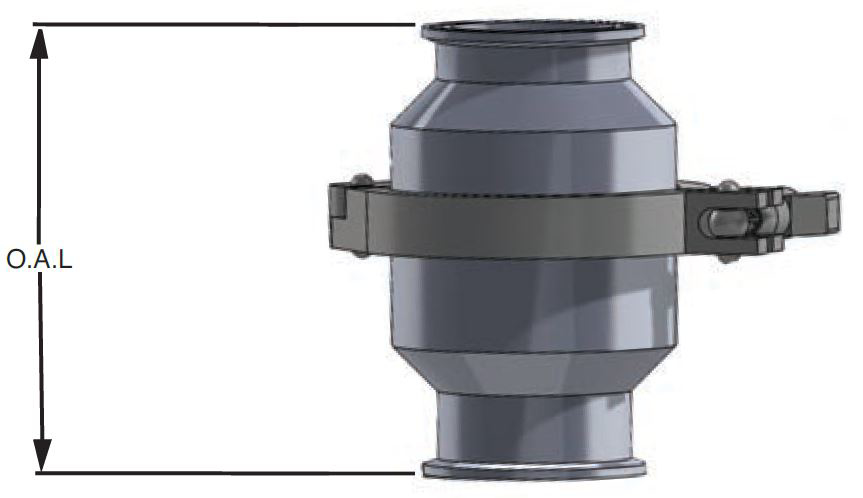

View Dimensions

Dimensions

45C - Clamp End Spring Check Valve

OD Tube Size	O.A.L, in.	O.A.L., mm.	Product Weight
0.5	3.5	88.9	2.2
0.75	3.5	88.9	2.2
1	4.125	104.78	3.5
1.5	4.56	115.82	3.5
2	5.065	128.65	5.4
2.5	5.375	136.53	6
3	6.125	155.58	6.25
4	8.125	206.38	16

Close

EPDM

	VNE part number
OD Tube Size	316L
0.5	45C-6.5-E
0.75	45C-6.75-E
1	45C-61.0-E
1.5	45C-61.5-E
2	45C-62.0-E
2.5	45C-62.5-E
3	45C-63.0-E
4	45C-64.0-E

VITON

	VNE part number
OD Tube Size	316L
0.5	45C-6.5-V
0.75	45C-6.75-V
1	45C-61.0-V
1.5	45C-61.5-V
2	45C-62.0-V
2.5	45C-62.5-V
3	45C-63.0-V
4	45C-64.0-V

Size	0.5
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-6.5.STEP
Catalog File	valves.pdf
O.A.L, in.	3.5
O.A.L., mm.	88.9
Product Weight	2.2

Size	0.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-6.5.STEP
Catalog File	valves.pdf
O.A.L, in.	3.5
O.A.L., mm.	88.9
Product Weight	2.2

Size	0.75
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-6.75.STEP
Catalog File	valves.pdf
O.A.L, in.	3.5
O.A.L., mm.	88.9
Product Weight	2.2

Size	0.75
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-6.75.STEP
Catalog File	valves.pdf
O.A.L, in.	3.5
O.A.L., mm.	88.9
Product Weight	2.2

Size	1
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-61.0.STEP
Catalog File	valves.pdf
O.A.L, in.	4.125
O.A.L., mm.	104.78
Product Weight	3.5

Size	1
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-61.0.STEP
Catalog File	valves.pdf
O.A.L, in.	4.125
O.A.L., mm.	104.78
Product Weight	3.5

Size	1.5
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-61.5.STEP
Catalog File	valves.pdf
O.A.L, in.	4.56
O.A.L., mm.	115.82
Product Weight	3.5

Size	1.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-61.5.STEP
Catalog File	valves.pdf
O.A.L, in.	4.56
O.A.L., mm.	115.82
Product Weight	3.5

Size	2
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-62.0.STEP
Catalog File	valves.pdf
O.A.L, in.	5.065
O.A.L., mm.	128.65
Product Weight	5.4

Size	2
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-62.0.STEP
Catalog File	valves.pdf
O.A.L, in.	5.065
O.A.L., mm.	128.65
Product Weight	5.4

Size	2.5
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-62.5.STEP
Catalog File	valves.pdf
O.A.L, in.	5.375
O.A.L., mm.	136.53
Product Weight	6

Size	2.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-62.5.STEP
Catalog File	valves.pdf
O.A.L, in.	5.375
O.A.L., mm.	136.53
Product Weight	6

Size	3
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-63.0.STEP
Catalog File	valves.pdf
O.A.L, in.	6.125
O.A.L., mm.	155.58
Product Weight	6.25

Size	3
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-63.0.STEP
Catalog File	valves.pdf
O.A.L, in.	6.125
O.A.L., mm.	155.58
Product Weight	6.25

Size	4
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-64.0.STEP
Catalog File	valves.pdf
O.A.L, in.	8.125
O.A.L., mm.	206.38
Product Weight	16

Size	4
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-64.0.STEP
Catalog File	valves.pdf
O.A.L, in.	8.125
O.A.L., mm.	206.38
Product Weight	16
