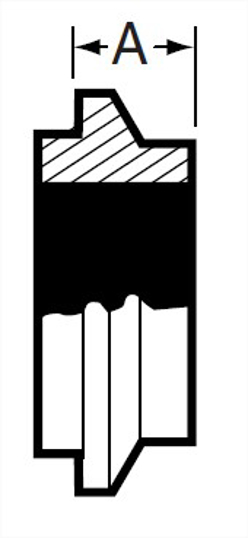

OD Tube Size | A, in. | A, mm. | B, in. | C, in. | C, mm. | D, in. | D, mm. | T Nom Wall, in. | Product Weight |
---|---|---|---|---|---|---|---|---|---|
1 |
|
|
|
|
|
|
|
|
|
1.5 |
|
|
|
|
|
|
|
|
|
2 |
|
|
|
|
|
|
|
|
|
2.5 |
|
|
|
|
|
|
|
|
|
3 |
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
|
|
|
|
|
VNE part number | |
---|---|
OD Tube Size | 316L |
1 | E14WI-5-6L1.0 |
1.5 | E14WI-5-6L1.5 |
2 | E14WI-5-6L2.0 |
2.5 | E14WI-5-6L2.5 |
3 | E14WI-5-6L3.0 |
4 | E14WI-5-6L4.0 |
Cad Model File | Click here to request 3D Step File |
Material Type | 316L |
Size | 1 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Male E-Line X Schedule 5 Pipe |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | HDI-14WI |
Wayland Part Number | W14WI |
Dixon Part Number | 14WI |
Sanitary Solutions Part Number | SS14WI |
Sanitube Part Number | 14WI |
A, in. | 0.945 |
A, mm. | 24 |
B, in. | 2 |
C, in. | 1.185 |
C, mm. | 30.1 |
D, in. | 1.315 |
D, mm. | 33.4 |
T Nom Wall, in. | 0.065 |
Cad Model File | Click here to request 3D Step File |
Material Type | 316L |
Size | 1.5 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Male E-Line X Schedule 5 Pipe |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | HDI-14WI |
Wayland Part Number | W14WI |
Dixon Part Number | 14WI |
Sanitary Solutions Part Number | SS14WI |
Sanitube Part Number | 14WI |
A, in. | 1.024 |
A, mm. | 26.01 |
B, in. | 2.648 |
C, in. | 1.77 |
C, mm. | 44.96 |
D, in. | 1.9 |
D, mm. | 48.26 |
T Nom Wall, in. | 0.065 |
Product Weight | 0.359 |
Cad Model File | Click here to request 3D Step File |
Material Type | 316L |
Size | 2 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Male E-Line X Schedule 5 Pipe |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | HDI-14WI |
Wayland Part Number | W14WI |
Dixon Part Number | 14WI |
Sanitary Solutions Part Number | SS14WI |
Sanitube Part Number | 14WI |
A, in. | 1.142 |
A, mm. | 29.01 |
B, in. | 3.317 |
C, in. | 2.245 |
C, mm. | 57.02 |
D, in. | 2.375 |
D, mm. | 60.33 |
T Nom Wall, in. | 0.065 |
Product Weight | 0.617 |
Cad Model File | Click here to request 3D Step File |
Material Type | 316L |
Size | 2.5 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Male E-Line X Schedule 5 Pipe |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | HDI-14WI |
Wayland Part Number | W14WI |
Dixon Part Number | 14WI |
Sanitary Solutions Part Number | SS14WI |
Sanitube Part Number | 14WI |
A, in. | 1.22 |
A, mm. | 30.99 |
B, in. | 3.868 |
C, in. | 2.709 |
C, mm. | 68.81 |
D, in. | 2.875 |
D, mm. | 73.03 |
T Nom Wall, in. | 0.083 |
Product Weight | 0.914 |
Cad Model File | Click here to request 3D Step File |
Material Type | 316L |
Size | 3 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Male E-Line X Schedule 5 Pipe |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | HDI-14WI |
Wayland Part Number | W14WI |
Dixon Part Number | 14WI |
Sanitary Solutions Part Number | SS14WI |
Sanitube Part Number | 14WI |
A, in. | 1.343 |
A, mm. | 34.11 |
B, in. | 4.882 |
C, in. | 3.334 |
C, mm. | 84.68 |
D, in. | 3.5 |
D, mm. | 88.9 |
T Nom Wall, in. | 0.083 |
Product Weight | 1.766 |
Cad Model File | Click here to request 3D Step File |
Material Type | 316L |
Size | 4 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Male E-Line X Schedule 5 Pipe |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | HDI-14WI |
Wayland Part Number | W14WI |
Dixon Part Number | 14WI |
Sanitary Solutions Part Number | SS14WI |
Sanitube Part Number | 14WI |
A, in. | 1.343 |
A, mm. | 34.11 |
B, in. | 5.882 |
C, in. | 4.334 |
C, mm. | 110.08 |
D, in. | 4.5 |
D, mm. | 114.3 |
T Nom Wall, in. | 0.083 |
Product Weight | 2.342 |
