E2PI - Male E-Line X Female E-Line 45 Degree Elbow

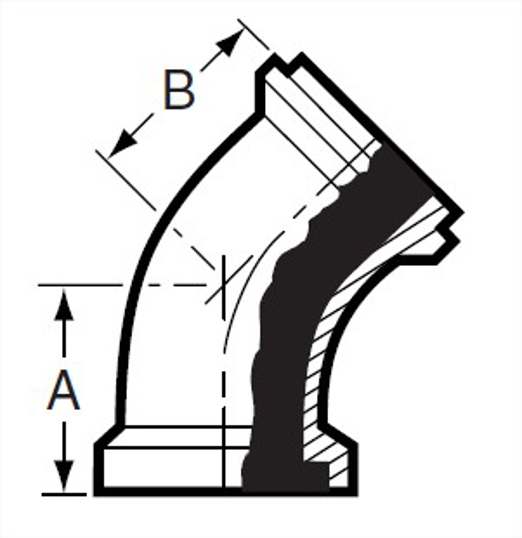

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	1.406	35.71	1.218	0.58
1.5	1.875	47.63	1.687	0.54
2	2.281	57.94	2.031	0.94
2.5	2.718	69.04	2.406	1.5
3	3.093	78.56	2.781	1.94
4	3.843	97.61	3.531	3.46
6	4.875	123.83	4.562	--

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	1.406
A, mm.	35.71
B, in.	1.218
Product Weight	0.58

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	1.875
A, mm.	47.63
B, in.	1.687
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	2.281
A, mm.	57.94
B, in.	2.031
Product Weight	0.94

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	2.718
A, mm.	69.04
B, in.	2.406
Product Weight	1.5

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	3.093
A, mm.	78.56
B, in.	2.781
Product Weight	1.94

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	3.843
A, mm.	97.61
B, in.	3.531
Product Weight	3.46

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	4.875
A, mm.	123.83
B, in.	4.562

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	1.406
A, mm.	35.71
B, in.	1.218
Product Weight	0.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	1.875
A, mm.	47.63
B, in.	1.687
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	2.281
A, mm.	57.94
B, in.	2.031
Product Weight	0.94

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	2.718
A, mm.	69.04
B, in.	2.406
Product Weight	1.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	3.093
A, mm.	78.56
B, in.	2.781
Product Weight	1.94

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	3.843
A, mm.	97.61
B, in.	3.531
Product Weight	3.46

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2P
Wayland Part Number	W2PI
Dixon Part Number	B2PI
Sanitary Solutions Part Number	SS2PI
Sanitube Part Number	2PI
A, in.	4.875
A, mm.	123.83
B, in.	4.562
