E2CI - Female E-Line 90 Degree Elbow

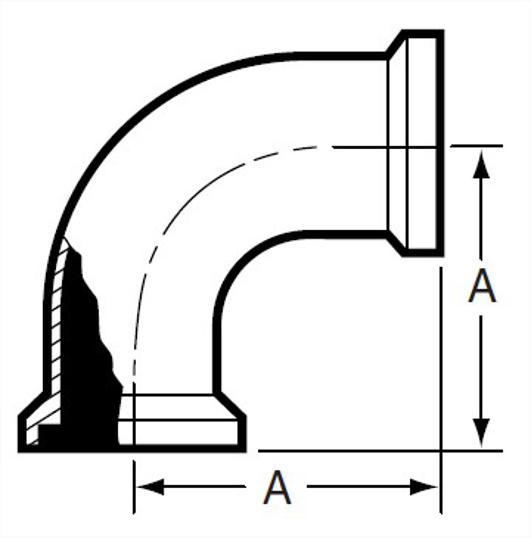

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	2.281	57.94	0.7
1.5	3.182	80.82	0.64
2	4.031	102.39	1.3
2.5	4.906	124.61	2
3	5.718	145.24	2.64
4	7.343	186.51	4.92
6	10.125	257.18	--

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	2.281
A, mm.	57.94
Product Weight	0.7

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	3.182
A, mm.	80.82
Product Weight	0.64

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	4.031
A, mm.	102.39
Product Weight	1.3

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	4.906
A, mm.	124.61
Product Weight	2

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	5.718
A, mm.	145.24
Product Weight	2.64

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	7.343
A, mm.	186.51
Product Weight	4.92

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	10.125
A, mm.	257.18

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	2.281
A, mm.	57.94
Product Weight	0.7

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	3.182
A, mm.	80.82
Product Weight	0.64

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	4.031
A, mm.	102.39
Product Weight	1.3

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	4.906
A, mm.	124.61
Product Weight	2

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	5.718
A, mm.	145.24
Product Weight	2.64

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	7.343
A, mm.	186.51
Product Weight	4.92

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2C
Wayland Part Number	W2CI
Dixon Part Number	B2CI
Sanitary Solutions Part Number	SS2CI
Sanitube Part Number	2CI
A, in.	10.125
A, mm.	257.18
