EG14AM7-10 - Shedule 10 Long Ferrule

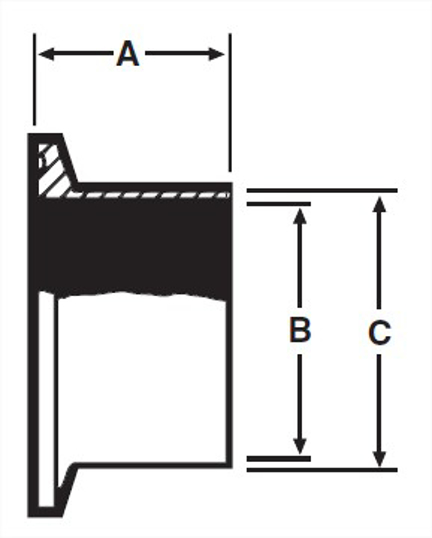

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	T Nom Wall, in.
1	1.125	28.58	1.097	1.315	33.4	0.109
1.5	1.125	28.58	1.682	1.9	48.26	0.109
2	1.125	28.58	2.157	2.375	60.33	0.109
2.5	1.125	28.58	2.635	2.875	73.03	0.12
3	1.125	28.58	3.26	3.5	88.9	0.12
4	1.125	28.58	4.26	4.5	114.3	0.12

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	3.26
C, in.	3.5
C, mm.	88.9
T Nom Wall, in.	0.12

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	2.157
C, in.	2.375
C, mm.	60.33
T Nom Wall, in.	0.109

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	2.635
C, in.	2.875
C, mm.	73.03
T Nom Wall, in.	0.12

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	1.682
C, in.	1.9
C, mm.	48.26
T Nom Wall, in.	0.109

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	4.26
C, in.	4.5
C, mm.	114.3
T Nom Wall, in.	0.12

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7
A, in.	1.125
A, mm.	28.58
B, in.	1.097
C, in.	1.315
C, mm.	33.4
T Nom Wall, in.	0.109
