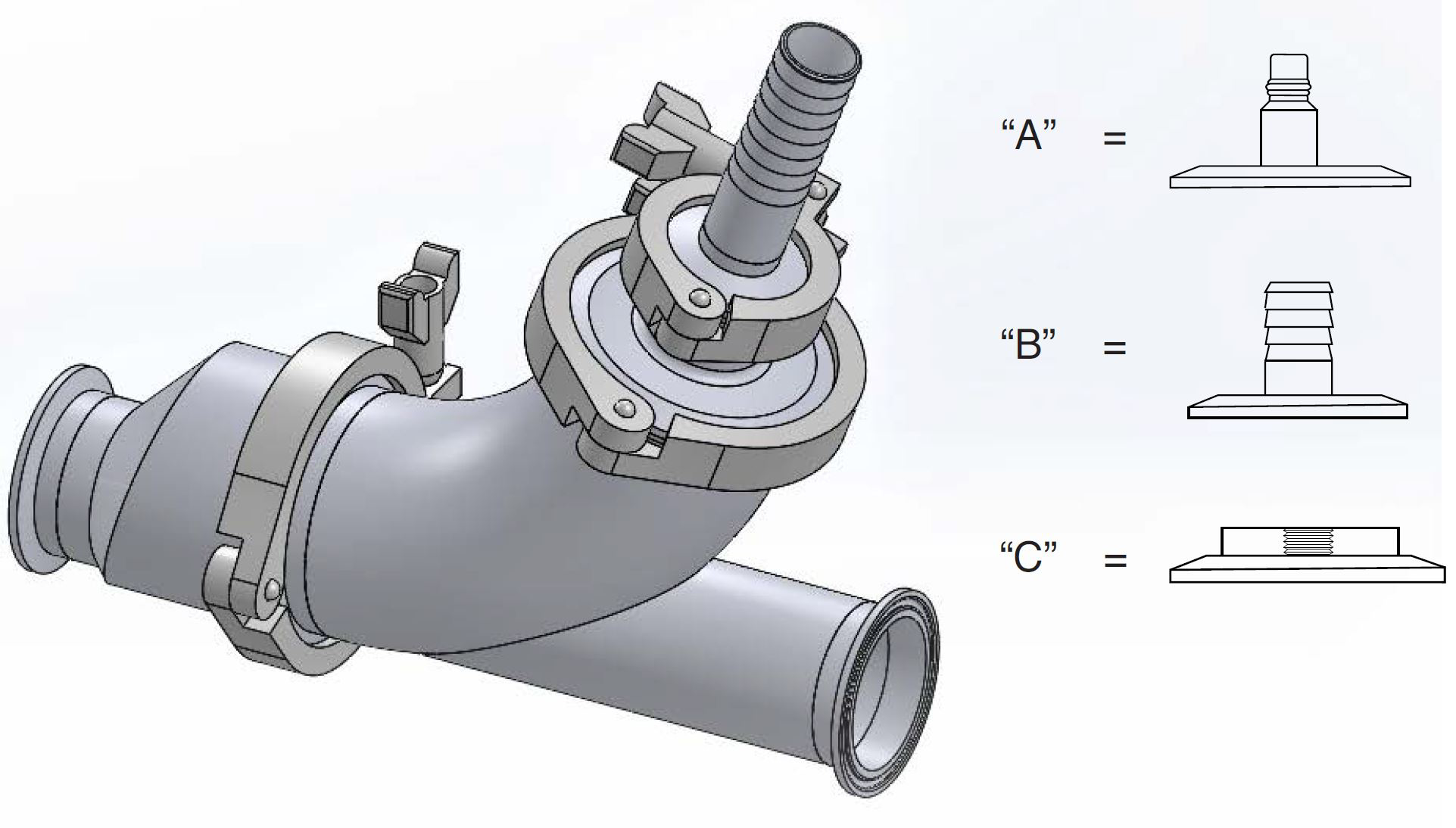

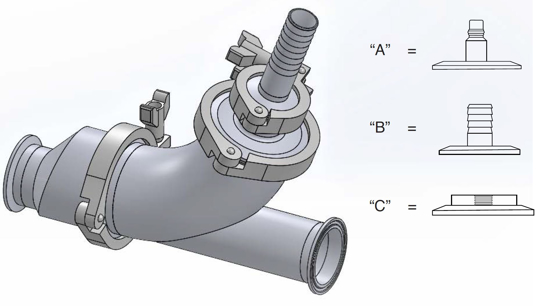

E45WWABC - Weld Ball Check Valve w/Air Blow Check NPT Type C

E45WWABC - Weld Ball Check Valve w/Air Blow Check NPT Type C

Size
Seat Material
Air Connection Size

View Dimensions

Dimensions

E45WWABC - Weld Ball Check Valve w/Air Blow Check NPT Type C

OD Tube Size
1.5
2
2.5
3

Close

BUNA, .375 FNPT

	VNE part number
OD Tube Size	316L
1.5	E45WWABC-61.5-.375
2	E45WWABC-62.0-.375
2.5	E45WWABC-62.5-.375
3	E45WWABC-63.0-.375

BUNA, .5 FNPT

	VNE part number
OD Tube Size	316L
1.5	E45WWABC-61.5-.5
2	E45WWABC-62.0-.5
2.5	E45WWABC-62.5-.5
3	E45WWABC-63.0-.5

BUNA, .625 FNPT

	VNE part number
OD Tube Size	316L
1.5	E45WWABC-61.5-.625
2	E45WWABC-62.0-.625
2.5	E45WWABC-62.5-.625
3	E45WWABC-63.0-.625

BUNA, .75 FNPT

	VNE part number
OD Tube Size	316L
1.5	E45WWABC-61.5-.75
2	E45WWABC-62.0-.75
2.5	E45WWABC-62.5-.75
3	E45WWABC-63.0-.75

Viton, .375 FNPT

	VNE part number
OD Tube Size	316L
1.5	E45WWABC-61.5-.375-V
2	E45WWABC-62.0-.375-V
2.5	E45WWABC-62.5-.375-V
3	E45WWABC-63.0-.375-V

Viton, .5 FNPT

	VNE part number
OD Tube Size	316L
1.5	E45WWABC-61.5-.5-V
2	E45WWABC-62.0-.5-V
2.5	E45WWABC-62.5-.5-V
3	E45WWABC-63.0-.5-V

Viton, .625 FNPT

	VNE part number
OD Tube Size	316L
1.5	E45WWABC-61.5-.625-V
2	E45WWABC-62.0-.625-V
2.5	E45WWABC-62.5-.625-V
3	E45WWABC-63.0-.625-V

Viton, .75 FNPT

	VNE part number
OD Tube Size	316L
1.5	E45WWABC-61.5-.75-V
2	E45WWABC-62.0-.75-V
2.5	E45WWABC-62.5-.75-V
3	E45WWABC-63.0-.75-V

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	BUNA
Air Connection Size	.75 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .75" FNPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	BUNA
Air Connection Size	.75 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .75" FNPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	BUNA
Air Connection Size	.75 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .75" FNPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	BUNA
Air Connection Size	.75 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .75" FNPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	BUNA
Air Connection Size	.375 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .375" FNPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	BUNA
Air Connection Size	.375 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .375" FNPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	BUNA
Air Connection Size	.375 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .375" FNPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	BUNA
Air Connection Size	.375 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .375" FNPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	BUNA
Air Connection Size	.5 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .5" FNPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	BUNA
Air Connection Size	.5 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .5" FNPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	BUNA
Air Connection Size	.5 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .5" FNPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	BUNA
Air Connection Size	.5 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .5" FNPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	BUNA
Air Connection Size	.625 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .625" FNPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	BUNA
Air Connection Size	.625 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .625" FNPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	BUNA
Air Connection Size	.625 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .625" FNPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	BUNA
Air Connection Size	.625 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .625" FNPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	Viton
Air Connection Size	.5 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .5" FNPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	Viton
Air Connection Size	.5 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .5" FNPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	Viton
Air Connection Size	.5 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .5" FNPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	Viton
Air Connection Size	.5 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .5" FNPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	Viton
Air Connection Size	.75 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .75" FNPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	Viton
Air Connection Size	.75 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .75" FNPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	Viton
Air Connection Size	.75 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .75" FNPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	Viton
Air Connection Size	.75 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .75" FNPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	Viton
Air Connection Size	.375 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .375" FNPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	Viton
Air Connection Size	.375 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .375" FNPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	Viton
Air Connection Size	.375 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .375" FNPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	Viton
Air Connection Size	.375 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .375" FNPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	Viton
Air Connection Size	.625 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .625" FNPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	Viton
Air Connection Size	.625 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .625" FNPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	Viton
Air Connection Size	.625 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .625" FNPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	Viton
Air Connection Size	.625 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .625" FNPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Click here to request 3D Step File

Visit Neumo Ehrenberg Group

Questions? Call Toll Free: 1.800.356.1111

1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930
