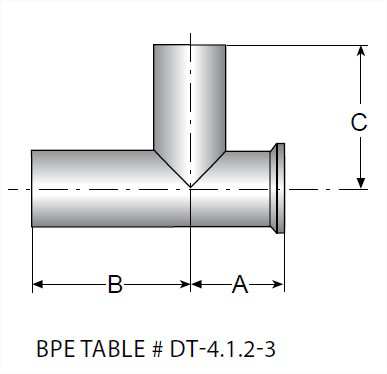

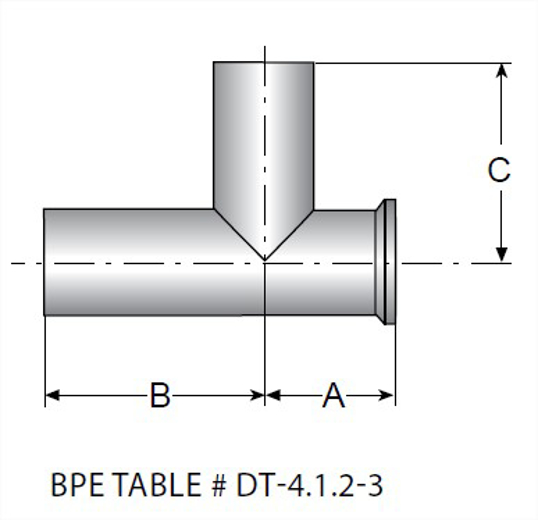

OD Tube Size | A, in. | A, mm. | B, in. | C, in. | C, mm. | Product Weight |
---|---|---|---|---|---|---|
0.25 |
|
|
|
|
|
|
0.375 |
|
|
|
|
|
|
0.5 |
|
|
|
|
|
|
0.75 |
|
|
|
|
|
|
1 |
|
|
|
|
|
|
1.5 |
|
|
|
|
|
|
2 |
|
|
|
|
|
|
2.5 |
|
|
|
|
|
|
3 |
|
|
|
|
|
|
4 |
|
|
|
|
|
|
6 |
|
|
|
|
|
|
VNE part number | |
---|---|
OD Tube Size | 316L |
0.25 | TE7WCSW6L.25-PC |
0.375 | TE7WCSW6L.375-PC |
0.5 | TE7WCSW6L.5-PC |
0.75 | TE7WCSW6L.75-PC |
1 | TE7WCSW6L1.0-PC |
1.5 | TE7WCSW6L1.5-PC |
2 | TE7WCSW6L2.0-PC |
2.5 | TE7WCSW6L2.5-PC |
3 | TE7WCSW6L3.0-PC |
4 | TE7WCSW6L4.0-PC |
6 | TE7WCSW6L6.0-PC |
VNE part number | |
---|---|
OD Tube Size | 316L |
0.25 | TE7WCSW6L.25-PD |
0.375 | TE7WCSW6L.375-PD |
0.5 | TE7WCSW6L.5-PD |
0.75 | TE7WCSW6L.75-PD |
1 | TE7WCSW6L1.0-PD |
1.5 | TE7WCSW6L1.5-PD |
2 | TE7WCSW6L2.0-PD |
2.5 | TE7WCSW6L2.5-PD |
3 | TE7WCSW6L3.0-PD |
4 | TE7WCSW6L4.0-PD |
6 | TE7WCSW6L6.0-PD |
VNE part number | |
---|---|
OD Tube Size | 316L |
0.25 | TE7WCSW6L.25-PL |
0.375 | TE7WCSW6L.375-PL |
0.5 | TE7WCSW6L.5-PL |
0.75 | TE7WCSW6L.75-PL |
1 | TE7WCSW6L1.0-PL |
1.5 | TE7WCSW6L1.5-PL |
2 | TE7WCSW6L2.0-PL |
2.5 | TE7WCSW6L2.5-PL |
3 | TE7WCSW6L3.0-PL |
4 | TE7WCSW6L4.0-PL |
6 | TE7WCSW6L6.0-PL |
VNE part number | |
---|---|
OD Tube Size | 316L |
0.25 | TE7WCSW6L.25-PM |
0.375 | TE7WCSW6L.375-PM |
0.5 | TE7WCSW6L.5-PM |
0.75 | TE7WCSW6L.75-PM |
1 | TE7WCSW6L1.0-PM |
1.5 | TE7WCSW6L1.5-PM |
2 | TE7WCSW6L2.0-PM |
2.5 | TE7WCSW6L2.5-PM |
3 | TE7WCSW6L3.0-PM |
4 | TE7WCSW6L4.0-PM |
6 | TE7WCSW6L6.0-PM |
Size | 0.25 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 0.25 |
Wall Thickness | 0.035 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.25-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.75 |
C, in. | 1.75 |
C, mm. | 44.45 |
Size | 0.375 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 0.375 |
Wall Thickness | 0.035 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.375-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.75 |
C, in. | 1.75 |
C, mm. | 44.45 |
Size | 0.5 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 0.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.875 |
C, in. | 1.875 |
C, mm. | 47.63 |
Product Weight | 0.2 |
Size | 0.75 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 0.75 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.75-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1 |
A, mm. | 25.4 |
B, in. | 2 |
C, in. | 2 |
C, mm. | 50.8 |
Product Weight | 0.4 |
Size | 1 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L1.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 2.125 |
C, in. | 2.125 |
C, mm. | 53.98 |
Product Weight | 0.7 |
Size | 1.5 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L1.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.375 |
A, mm. | 34.93 |
B, in. | 2.375 |
C, in. | 2.375 |
C, mm. | 60.33 |
Product Weight | 0.9 |
Size | 2 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L2.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.625 |
A, mm. | 41.28 |
B, in. | 2.875 |
C, in. | 2.875 |
C, mm. | 73.03 |
Product Weight | 1.2 |
Size | 2.5 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L2.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.875 |
A, mm. | 47.63 |
B, in. | 3.125 |
C, in. | 3.125 |
C, mm. | 79.38 |
Product Weight | 1.3 |
Size | 3 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L3.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 2.125 |
A, mm. | 53.98 |
B, in. | 3.375 |
C, in. | 3.375 |
C, mm. | 85.73 |
Product Weight | 1.8 |
Size | 4 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L4.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 2.75 |
A, mm. | 69.85 |
B, in. | 4.125 |
C, in. | 4.125 |
C, mm. | 104.78 |
Product Weight | 2.15 |
Size | 6 |
Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
Polish Code | PM |
SF Number | SF4 |
OD Tube Size | 6 |
Wall Thickness | 0.109 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L6.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 4.625 |
A, mm. | 117.48 |
B, in. | 5.625 |
C, in. | 5.625 |
C, mm. | 142.88 |
Product Weight | 10.2 |
Size | 6 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 6 |
Wall Thickness | 0.109 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L6.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 4.625 |
A, mm. | 117.48 |
B, in. | 5.625 |
C, in. | 5.625 |
C, mm. | 142.88 |
Product Weight | 10.2 |
Size | 4 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L4.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 2.75 |
A, mm. | 69.85 |
B, in. | 4.125 |
C, in. | 4.125 |
C, mm. | 104.78 |
Product Weight | 2.15 |
Size | 3 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L3.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 2.125 |
A, mm. | 53.98 |
B, in. | 3.375 |
C, in. | 3.375 |
C, mm. | 85.73 |
Product Weight | 1.8 |
Size | 2.5 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L2.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.875 |
A, mm. | 47.63 |
B, in. | 3.125 |
C, in. | 3.125 |
C, mm. | 79.38 |
Product Weight | 1.3 |
Size | 2 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L2.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.625 |
A, mm. | 41.28 |
B, in. | 2.875 |
C, in. | 2.875 |
C, mm. | 73.03 |
Product Weight | 1.2 |
Size | 1.5 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L1.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.375 |
A, mm. | 34.93 |
B, in. | 2.375 |
C, in. | 2.375 |
C, mm. | 60.33 |
Product Weight | 0.9 |
Size | 1 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L1.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 2.125 |
C, in. | 2.125 |
C, mm. | 53.98 |
Product Weight | 0.7 |
Size | 0.75 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 0.75 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.75-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1 |
A, mm. | 25.4 |
B, in. | 2 |
C, in. | 2 |
C, mm. | 50.8 |
Product Weight | 0.4 |
Size | 0.5 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 0.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.875 |
C, in. | 1.875 |
C, mm. | 47.63 |
Product Weight | 0.2 |
Size | 0.375 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 0.375 |
Wall Thickness | 0.035 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.375-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.75 |
C, in. | 1.75 |
C, mm. | 44.45 |
Size | 0.25 |
Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
Polish Code | PL |
SF Number | SF1 |
OD Tube Size | 0.25 |
Wall Thickness | 0.035 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.25-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.75 |
C, in. | 1.75 |
C, mm. | 44.45 |
Size | 0.375 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 0.375 |
Wall Thickness | 0.035 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.375-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.75 |
C, in. | 1.75 |
C, mm. | 44.45 |
Size | 0.25 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 0.25 |
Wall Thickness | 0.035 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.25-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.75 |
C, in. | 1.75 |
C, mm. | 44.45 |
Size | 0.5 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 0.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.875 |
C, in. | 1.875 |
C, mm. | 47.63 |
Product Weight | 0.2 |
Size | 0.75 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 0.75 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.75-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1 |
A, mm. | 25.4 |
B, in. | 2 |
C, in. | 2 |
C, mm. | 50.8 |
Product Weight | 0.4 |
Size | 1 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L1.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 2.125 |
C, in. | 2.125 |
C, mm. | 53.98 |
Product Weight | 0.7 |
Size | 1.5 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L1.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.375 |
A, mm. | 34.93 |
B, in. | 2.375 |
C, in. | 2.375 |
C, mm. | 60.33 |
Product Weight | 0.9 |
Size | 2 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L2.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.625 |
A, mm. | 41.28 |
B, in. | 2.875 |
C, in. | 2.875 |
C, mm. | 73.03 |
Product Weight | 1.2 |
Size | 2.5 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L2.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.875 |
A, mm. | 47.63 |
B, in. | 3.125 |
C, in. | 3.125 |
C, mm. | 79.38 |
Product Weight | 1.3 |
Size | 3 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L3.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 2.125 |
A, mm. | 53.98 |
B, in. | 3.375 |
C, in. | 3.375 |
C, mm. | 85.73 |
Product Weight | 1.8 |
Size | 4 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L4.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 2.75 |
A, mm. | 69.85 |
B, in. | 4.125 |
C, in. | 4.125 |
C, mm. | 104.78 |
Product Weight | 2.15 |
Size | 6 |
Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
Polish Code | PD |
SF Number | SF4 |
OD Tube Size | 6 |
Wall Thickness | 0.109 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L6.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 4.625 |
A, mm. | 117.48 |
B, in. | 5.625 |
C, in. | 5.625 |
C, mm. | 142.88 |
Product Weight | 10.2 |
Size | 6 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 6 |
Wall Thickness | 0.109 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L6.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 4.625 |
A, mm. | 117.48 |
B, in. | 5.625 |
C, in. | 5.625 |
C, mm. | 142.88 |
Product Weight | 10.2 |
Size | 4 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L4.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 2.75 |
A, mm. | 69.85 |
B, in. | 4.125 |
C, in. | 4.125 |
C, mm. | 104.78 |
Product Weight | 2.15 |
Size | 3 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L3.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 2.125 |
A, mm. | 53.98 |
B, in. | 3.375 |
C, in. | 3.375 |
C, mm. | 85.73 |
Product Weight | 1.8 |
Size | 2.5 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L2.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.875 |
A, mm. | 47.63 |
B, in. | 3.125 |
C, in. | 3.125 |
C, mm. | 79.38 |
Product Weight | 1.3 |
Size | 2 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L2.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.625 |
A, mm. | 41.28 |
B, in. | 2.875 |
C, in. | 2.875 |
C, mm. | 73.03 |
Product Weight | 1.2 |
Size | 1.5 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L1.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.375 |
A, mm. | 34.93 |
B, in. | 2.375 |
C, in. | 2.375 |
C, mm. | 60.33 |
Product Weight | 0.9 |
Size | 1 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L1.0-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 2.125 |
C, in. | 2.125 |
C, mm. | 53.98 |
Product Weight | 0.7 |
Size | 0.75 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 0.75 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.75-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 1 |
A, mm. | 25.4 |
B, in. | 2 |
C, in. | 2 |
C, mm. | 50.8 |
Product Weight | 0.4 |
Size | 0.25 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 0.25 |
Wall Thickness | 0.035 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.25-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.75 |
C, in. | 1.75 |
C, mm. | 44.45 |
Size | 0.375 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 0.375 |
Wall Thickness | 0.035 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.375-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.75 |
C, in. | 1.75 |
C, mm. | 44.45 |
Size | 0.5 |
Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
Industry Standard | ASME BPE;3A |
BPE Table # | DT-4.1.2-3 |
ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
Polish Code | PC |
SF Number | SF1 |
OD Tube Size | 0.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Country of Origin | USA, Israel |
Material Test Reports | MTR’s Ship Automatically With Each Order |
Passivated | Passivated per ASTM A967 |
Pressure Rating | Per current BPE standards - section DT |
Cad Model File | TE7WCSW6L.5-...STEP |
Catalog File | MaxPure BPE Fittings.pdf |
Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
A, in. | 0.875 |
A, mm. | 22.23 |
B, in. | 1.875 |
C, in. | 1.875 |
C, mm. | 47.63 |
Product Weight | 0.2 |
