EGSSB - Weld End Butterfly Valves

Material Type
Size
Seat Material

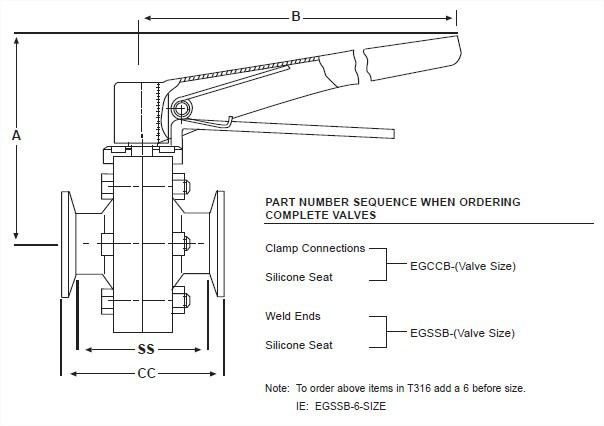

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	CC, in.	CC, mm.	SS, in.	SS, mm.
1	4.593	116.66	7	2.812	71.42	1.812	46.02
1.5	4.718	119.84	7	2.812	71.42	1.812	46.02
2	4.937	125.4	7	2.812	71.42	1.812	46.02
2.5	5.156	130.96	7	3.375	85.73	2.375	60.33
3	5.375	136.53	7	3.75	95.25	2.75	69.85
4	5.937	150.8	7	4	101.6	2.75	69.85

EPDM

	VNE part number
OD Tube Size	304	316
1	EGSSB1.0-E	EGSSB-61.0-E
1.5	EGSSB1.5-E	EGSSB-61.5-E
2	EGSSB2.0-E	EGSSB-62.0-E
2.5	--	EGSSB-62.5-E
3	EGSSB3.0-E	EGSSB-63.0-E
4	EGSSB4.0-E	EGSSB-64.0-E

Silicone

	VNE part number
OD Tube Size	304	316
1	EGSSB1.0	EGSSB-61.0
1.5	EGSSB1.5	EGSSB-61.5
2	EGSSB2.0	EGSSB-62.0
2.5	--	EGSSB-62.5
3	EGSSB3.0	EGSSB-63.0
4	EGSSB4.0	EGSSB-64.0

Viton

	VNE part number
OD Tube Size	304	316
1	EGSSB1.0-V	EGSSB-61.0-V
1.5	EGSSB1.5-V	EGSSB-61.5-V
2	EGSSB2.0-V	EGSSB-62.0-V
2.5	--	EGSSB-62.5-V
3	EGSSB3.0-V	EGSSB-63.0-V
4	EGSSB4.0-V	EGSSB-64.0-V

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.593
A, mm.	116.66
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.718
A, mm.	119.84
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.937
A, mm.	125.4
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.156
A, mm.	130.96
B, in.	7
CC, in.	3.375
CC, mm.	85.73
SS, in.	2.375
SS, mm.	60.33

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.375
A, mm.	136.53
B, in.	7
CC, in.	3.75
CC, mm.	95.25
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.937
A, mm.	150.8
B, in.	7
CC, in.	4
CC, mm.	101.6
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.718
A, mm.	119.84
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.937
A, mm.	125.4
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.156
A, mm.	130.96
B, in.	7
CC, in.	3.375
CC, mm.	85.73
SS, in.	2.375
SS, mm.	60.33

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.375
A, mm.	136.53
B, in.	7
CC, in.	3.75
CC, mm.	95.25
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.937
A, mm.	150.8
B, in.	7
CC, in.	4
CC, mm.	101.6
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.718
A, mm.	119.84
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.156
A, mm.	130.96
B, in.	7
CC, in.	3.375
CC, mm.	85.73
SS, in.	2.375
SS, mm.	60.33

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	3
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.375
A, mm.	136.53
B, in.	7
CC, in.	3.75
CC, mm.	95.25
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	4
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.937
A, mm.	150.8
B, in.	7
CC, in.	4
CC, mm.	101.6
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.718
A, mm.	119.84
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.593
A, mm.	116.66
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	1
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.593
A, mm.	116.66
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.937
A, mm.	150.8
B, in.	7
CC, in.	4
CC, mm.	101.6
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.593
A, mm.	116.66
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.718
A, mm.	119.84
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.937
A, mm.	125.4
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.375
A, mm.	136.53
B, in.	7
CC, in.	3.75
CC, mm.	95.25
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.937
A, mm.	150.8
B, in.	7
CC, in.	4
CC, mm.	101.6
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.593
A, mm.	116.66
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.718
A, mm.	119.84
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.937
A, mm.	125.4
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.375
A, mm.	136.53
B, in.	7
CC, in.	3.75
CC, mm.	95.25
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.937
A, mm.	150.8
B, in.	7
CC, in.	4
CC, mm.	101.6
SS, in.	2.75
SS, mm.	69.85

Cad Model File	Click here to request 3D Step File
Material Type	316
Size	2
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.937
A, mm.	125.4
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.593
A, mm.	116.66
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	4.937
A, mm.	125.4
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Catalog File	valves.pdf
A, in.	5.375
A, mm.	136.53
B, in.	7
CC, in.	3.75
CC, mm.	95.25
SS, in.	2.75
SS, mm.	69.85
