14-19 Adapter 13H Nut X MNPT

14-19 Adapter 13H Nut X MNPT

Material Type
Size

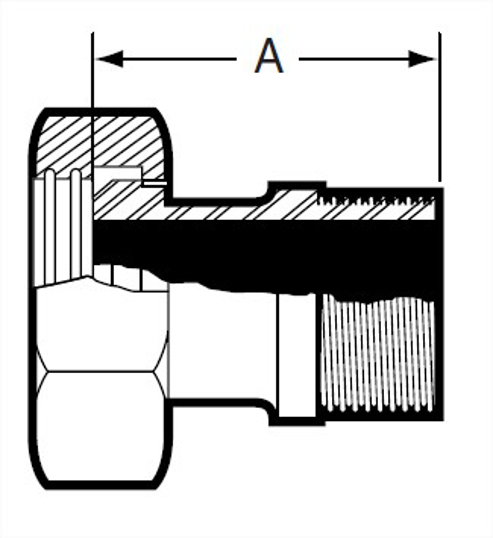

View Dimensions

Dimensions

14-19 Adapter 13H Nut X MNPT

OD Tube Size	A, in.	A, mm.	Product Weight
1	3.125	79.38	0.7
1.5	3.25	82.55	1.26
2	3.312	84.12	1.84
2.5	4.062	103.17	2.74
3	4.25	107.95	4.36
4	4.312	109.52	7.18

Close

	VNE part number
OD Tube Size	304	316L
1	14-191.0	14-19-6L1.0
1.5	14-191.5	14-19-6L1.5
2	14-192.0	14-19-6L2.0
2.5	14-192.5	14-19-6L2.5
3	14-193.0	14-19-6L3.0
4	14-194.0	14-19-6L4.0

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-191.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.125
A, mm.	79.38
Product Weight	0.7

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-191.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.25
A, mm.	82.55
Product Weight	1.26

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-192.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.312
A, mm.	84.12
Product Weight	1.84

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-192.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17
Product Weight	2.74

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-193.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
Product Weight	4.36

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-194.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.312
A, mm.	109.52
Product Weight	7.18

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-191.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.125
A, mm.	79.38
Product Weight	0.7

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-191.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.25
A, mm.	82.55
Product Weight	1.26

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-192.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.312
A, mm.	84.12
Product Weight	1.84

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-192.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17
Product Weight	2.74

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-193.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
Product Weight	4.36

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Male NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-194.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.312
A, mm.	109.52
Product Weight	7.18
