E28RWA - Weld End Reducing 45 Degree Lateral

E28RWA - Weld End Reducing 45 Degree Lateral

Material Type
Size

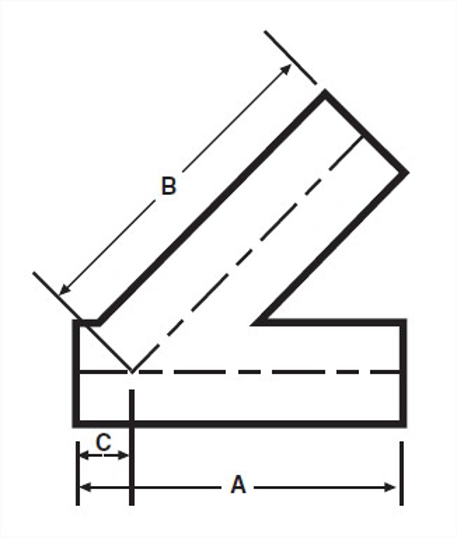

View Dimensions

Dimensions

E28RWA - Weld End Reducing 45 Degree Lateral

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	T Nom Wall, in.
1.5X1.0	7.375	187.33	6.187	1.187	30.15	0.065
2.0X1.0	8.625	219.08	7.125	1.625	41.28	0.065
2.0X1.5	8.625	219.08	7.125	1.625	41.28	0.065
2.5X1.0	10.125	257.18	8.5	1.5	38.1	0.065
2.5X1.5	10.125	257.18	8.5	1.5	38.1	0.065
2.5X2.0	10.125	257.18	8.5	1.5	38.1	0.065
3.0X1.0	10.75	273.05	8.875	1.875	47.63	0.065
3.0X1.5	10.75	273.05	8.875	1.875	47.63	0.065
3.0X2.0	10.75	273.05	8.875	1.875	47.63	0.065
3.0X2.5	10.75	273.05	8.875	1.875	47.63	0.065
4.0X1.0	12.812	325.42	10.75	2.062	52.37	0.083 x 0.065
4.0X1.5	12.812	325.42	10.75	2.062	52.37	0.083 x 0.065
4.0X2.0	12.812	325.42	10.75	2.062	52.37	0.083 x 0.065
4.0X2.5	12.812	325.42	10.75	2.062	52.37	0.083 x 0.065
4.0X3.0	12.812	325.42	10.75	2.062	52.37	0.083 x 0.065

Close

	VNE part number
OD Tube Size	304	316L
1.5X1.0	E28RWA1.5X1.0	E28RWA-6L1.5X1.0
2.0X1.0	E28RWA2.0X1.0	E28RWA-6L2.0X1.0
2.0X1.5	E28RWA2.0X1.5	E28RWA-6L2.0X1.5
2.5X1.0	E28RWA2.5X1.0	E28RWA-6L2.5X1.0
2.5X1.5	E28RWA2.5X1.5	E28RWA-6L2.5X1.5
2.5X2.0	E28RWA2.5X2.0	E28RWA-6L2.5X2.0
3.0X1.0	E28RWA3.0X1.0	E28RWA-6L3.0X1.0
3.0X1.5	E28RWA3.0X1.5	E28RWA-6L3.0X1.5
3.0X2.0	E28RWA3.0X2.0	E28RWA-6L3.0X2.0
3.0X2.5	E28RWA3.0X2.5	E28RWA-6L3.0X2.5
4.0X1.0	E28RWA4.0X1.0	E28RWA-6L4.0X1.0
4.0X1.5	E28RWA4.0X1.5	E28RWA-6L4.0X1.5
4.0X2.0	E28RWA4.0X2.0	E28RWA-6L4.0X2.0
4.0X2.5	E28RWA4.0X2.5	E28RWA-6L4.0X2.5
4.0X3.0	E28RWA4.0X3.0	E28RWA-6L4.0X3.0

Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-1.5X1-7-304
A, in.	7.375
A, mm.	187.33
B, in.	6.187
C, in.	1.187
C, mm.	30.15
T Nom Wall, in.	0.065

Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2X1-7-304
A, in.	8.625
A, mm.	219.08
B, in.	7.125
C, in.	1.625
C, mm.	41.28
T Nom Wall, in.	0.065

Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2X1.5-7-304
A, in.	8.625
A, mm.	219.08
B, in.	7.125
C, in.	1.625
C, mm.	41.28
T Nom Wall, in.	0.065

Material Type	304
Size	2.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA2.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2.5X1-7-304
A, in.	10.125
A, mm.	257.18
B, in.	8.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065

Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2.5X1.5-7-304
A, in.	10.125
A, mm.	257.18
B, in.	8.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2.5X2-7-304
A, in.	10.125
A, mm.	257.18
B, in.	8.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065

Material Type	304
Size	3.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA3.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-3X1-7-304
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065

Material Type	304
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-3X1.5-7-304
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-3X2-7-304
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065

Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-3X2.5-7-304
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065

Material Type	304
Size	4.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X1.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA4.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X1-7-304
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Material Type	304
Size	4.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X1.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA4.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X1.5-7-304
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X2-7-304
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X2.5-7-304
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X3-7-304
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-1.5X1-7-316
A, in.	7.375
A, mm.	187.33
B, in.	6.187
C, in.	1.187
C, mm.	30.15
T Nom Wall, in.	0.065

Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2X1-7-316
A, in.	8.625
A, mm.	219.08
B, in.	7.125
C, in.	1.625
C, mm.	41.28
T Nom Wall, in.	0.065

Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2X1.5-7-316
A, in.	8.625
A, mm.	219.08
B, in.	7.125
C, in.	1.625
C, mm.	41.28
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA2.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2.5X1-7-316
A, in.	10.125
A, mm.	257.18
B, in.	8.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2.5X1.5-7-316
A, in.	10.125
A, mm.	257.18
B, in.	8.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2.5X2-7-316
A, in.	10.125
A, mm.	257.18
B, in.	8.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065

Material Type	316L
Size	3.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA3.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-3X1-7-316
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065

Material Type	316L
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-3X1.5-7-316
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-3X2-7-316
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065

Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-3X2.5-7-316
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065

Material Type	316L
Size	4.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X1.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA4.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X1-7-316
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Material Type	316L
Size	4.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X1.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA4.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X1.5-7-316
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X2-7-316
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X2.5-7-316
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X3-7-316
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065

Visit Neumo Ehrenberg Group

Questions? Call Toll Free: 1.800.356.1111

1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930
