EG17PR - Clamp X Plain BS w/13H Nut Adapter

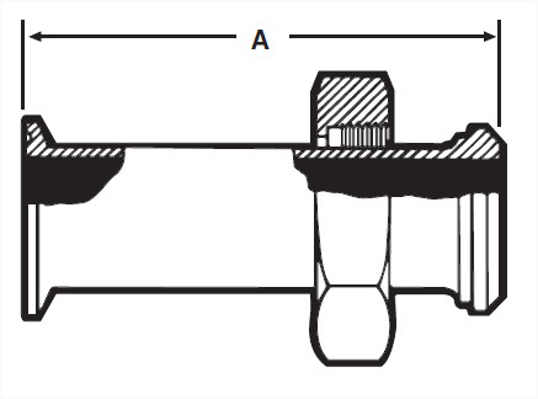

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	2.5	63.5	0.96
1.5	2.625	66.68	0.96
2	2.625	66.68	1.46
2.5	2.875	73.03	2.16
3	2.875	73.03	3.04
4	2.875	73.03	5.42

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-3-304
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.875
A, mm.	73.03
Product Weight	3.04

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-4-304
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.875
A, mm.	73.03
Product Weight	5.42

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-1-304
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.5
A, mm.	63.5
Product Weight	0.96

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-1.5-304
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.625
A, mm.	66.68
Product Weight	0.96

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-1-316
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.5
A, mm.	63.5
Product Weight	0.96

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-1.5-316
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.625
A, mm.	66.68
Product Weight	0.96

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-2-316
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.625
A, mm.	66.68
Product Weight	1.46

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-2.5-316
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.875
A, mm.	73.03
Product Weight	2.16

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-3-316
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.875
A, mm.	73.03
Product Weight	3.04

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-4-316
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.875
A, mm.	73.03
Product Weight	5.42

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-2-304
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.625
A, mm.	66.68
Product Weight	1.46

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG17PR2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	17MP-14
Steel O’brien Part Number	17MP-14-2.5-304
Wayland Part Number	W17MP-14
Dixon Part Number	17MP-14
Sanitary Solutions Part Number	SS17MP-14
Sanitube Part Number	17MP-14
A, in.	2.875
A, mm.	73.03
Product Weight	2.16
