Body Clamp Cap

Body Clamp Cap

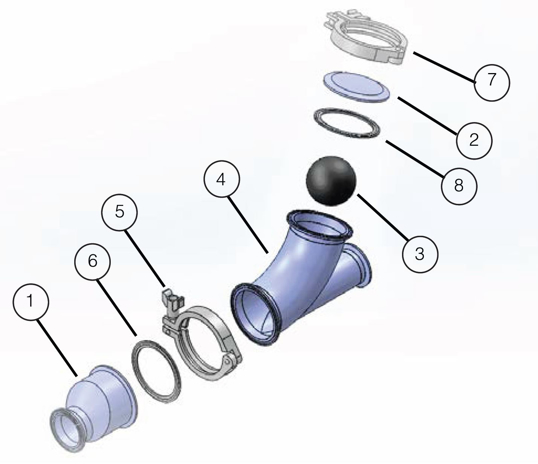

Item # 2 in drawing

Size

View Dimensions

Dimensions

Body Clamp Cap

OD Tube Size
2.5 - 3
1.5
2

Close

	VNE part number
OD Tube Size	316L
2.5 - 3	BCV2-2.5-3.0
1.5	BCV2-1.5
2	BCV2-2.0

Cad Model File	Click here to request 3D Step File
Component	Body Clamp Cap
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Material-Type	316L
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Component	Body Clamp Cap
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Material-Type	316L
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Component	Body Clamp Cap
Size	2.5 - 3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Material-Type	316L
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Catalog File	valves.pdf

Click here to request 3D Step File
