E2KT - Weld X Thread BS 45 Degree Elbow

Material Type
Size

Product configuration selected is not available or discontinued. Please review the chart below to see available product configurations or try to select a different material type/size option

View Dimensions

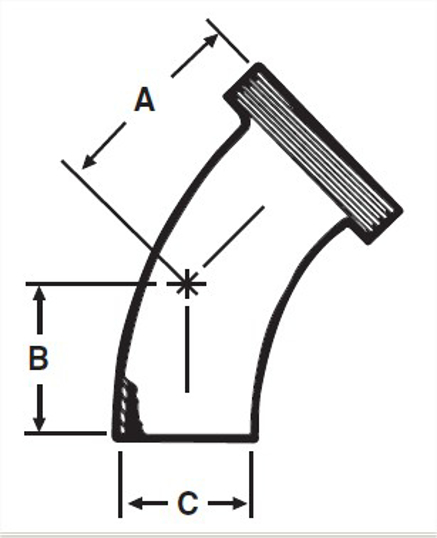

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	T Nom Wall, in.	Product Weight
1	1.875	47.63	1.187	1	25.4	0.065	0.3
1.5	2.343	59.51	1.625	1.5	38.1	0.065	0.46
2	3.031	76.99	2.312	2	50.8	0.065	0.84
2.5	3.843	97.61	3	2.5	63.5	0.065	1.3
3	4.593	116.66	3.687	3	76.2	0.065	1.84
4	6.031	153.19	4.812	4	101.6	0.083	2.82

	VNE part number
OD Tube Size	304	316L
1	E2KT1.0	E2KT-6L1.0
1.5	E2KT1.5	E2KT-6L1.5
2	E2KT2.0	E2KT-6L2.0
2.5	E2KT2.5	E2KT-6L2.5
3	E2KT3.0	E2KT-6L3.0
4	E2KT4.0	E2KT-6L4.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KT1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-1-7-304
A, in.	1.875
A, mm.	47.63
B, in.	1.187
C, in.	1
C, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.3

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KT1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-1.5-7-304
A, in.	2.343
A, mm.	59.51
B, in.	1.625
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.46

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KT2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-2-7-304
A, in.	3.031
A, mm.	76.99
B, in.	2.312
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.84

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KT2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-2.5-7-304
A, in.	3.843
A, mm.	97.61
B, in.	3
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.3

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KT3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-3-7-304
A, in.	4.593
A, mm.	116.66
B, in.	3.687
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.84

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KT4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-4-7-304
A, in.	6.031
A, mm.	153.19
B, in.	4.812
C, in.	4
C, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	2.82

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KT1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-1-7-316
A, in.	1.875
A, mm.	47.63
B, in.	1.187
C, in.	1
C, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.3

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KT1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-1.5-7-316
A, in.	2.343
A, mm.	59.51
B, in.	1.625
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.46

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KT2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-2-7-316
A, in.	3.031
A, mm.	76.99
B, in.	2.312
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.84

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KT2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-2.5-7-316
A, in.	3.843
A, mm.	97.61
B, in.	3
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.3

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KT3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-3-7-316
A, in.	4.593
A, mm.	116.66
B, in.	3.687
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.84

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KT4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2K-4-7-316
A, in.	6.031
A, mm.	153.19
B, in.	4.812
C, in.	4
C, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	3.54
