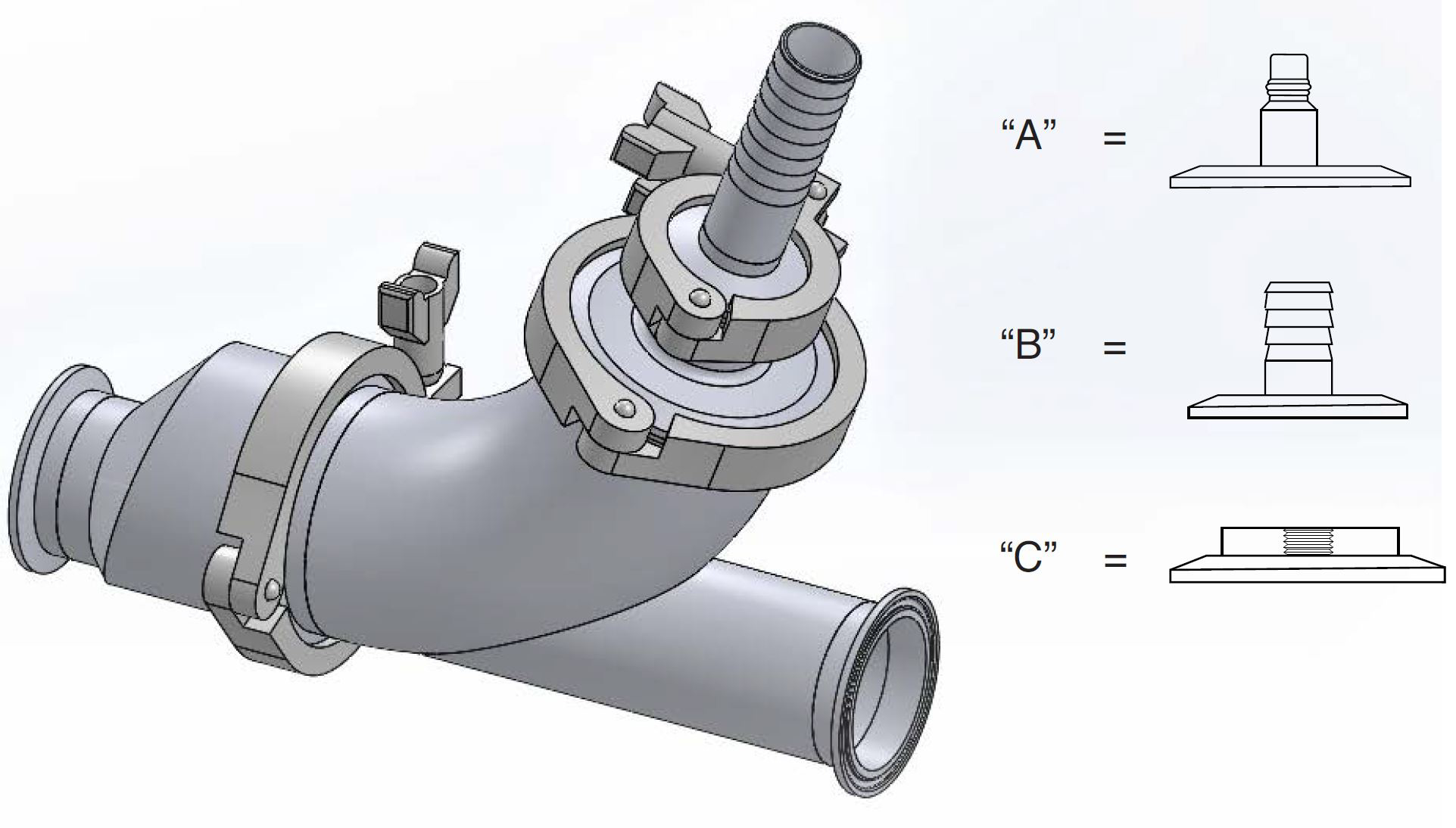

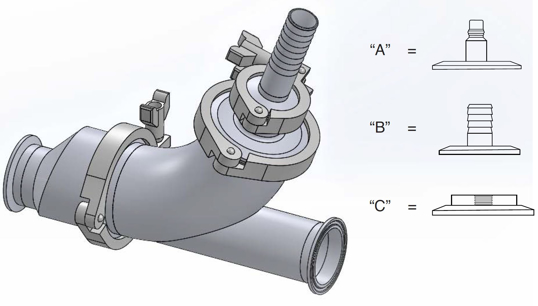

E45WWABA - Weld Ball Check Valve w/Air Blow Check Quick Connect Type A

E45WWABA - Weld Ball Check Valve w/Air Blow Check Quick Connect Type A

Size
Seat Material

View Dimensions

Dimensions

E45WWABA - Weld Ball Check Valve w/Air Blow Check Quick Connect Type A

OD Tube Size
1.5
2
2.5
3

Close

BUNA

	VNE part number
OD Tube Size	316L
1.5	E45WWABA-61.5
2	E45WWABA-62.0
2.5	E45WWABA-62.5
3	E45WWABA-63.0

Viton

	VNE part number
OD Tube Size	316L
1.5	E45WWABA-61.5-V
2	E45WWABA-62.0-V
2.5	E45WWABA-62.5-V
3	E45WWABA-63.0-V

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .25" QUICK DISCONNECT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .25" QUICK DISCONNECT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .25" QUICK DISCONNECT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .25" QUICK DISCONNECT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	Viton
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .25" QUICK DISCONNECT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	Viton
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .25" QUICK DISCONNECT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	Viton
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .25" QUICK DISCONNECT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	Viton
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X .25" QUICK DISCONNECT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Catalog File	valves.pdf
