E14HRI - Male E-Line by Rubber Hose Adapter

E14HRI - Male E-Line by Rubber Hose Adapter

Material Type
Size

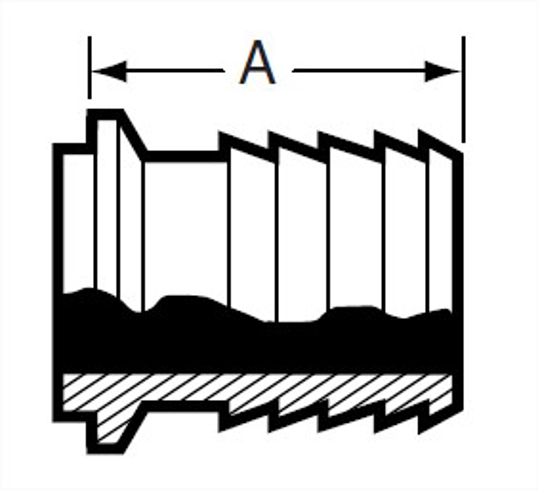

View Dimensions

Dimensions

E14HRI - Male E-Line by Rubber Hose Adapter

OD Tube Size	A, in.	A, mm.	Product Weight
1	3.562	90.47	0.38
1.5	3.75	95.25	0.44
2	3.75	95.25	0.6
2.5	3.812	96.82	0.92
3	3.875	98.43	1.12
4	4.062	103.17	1.76
6	8.812	223.82	--

Close

	VNE part number
OD Tube Size	304	316L
1	E14HRI1.0	E14HRI-6L1.0
1.5	E14HRI1.5	E14HRI-6L1.5
2	E14HRI2.0	E14HRI-6L2.0
2.5	E14HRI2.5	E14HRI-6L2.5
3	E14HRI3.0	E14HRI-6L3.0
4	E14HRI4.0	E14HRI-6L4.0
6	E14HRI6.0	E14HRI-6L6.0

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HRI1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.562
A, mm.	90.47
Product Weight	0.38

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HRI1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.44

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HRI2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.6

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HRI2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.812
A, mm.	96.82
Product Weight	0.92

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HRI3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.875
A, mm.	98.43
Product Weight	1.12

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HRI4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17
Product Weight	1.76

Material Type	316L
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14HRI6.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	8.812
A, mm.	223.82

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HRI3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.875
A, mm.	98.43
Product Weight	1.12

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HRI4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17
Product Weight	1.76

Material Type	304
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HRI6.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	8.812
A, mm.	223.82

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HRI1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.562
A, mm.	90.47
Product Weight	0.38

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HRI1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.44

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HRI2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.6

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14HRI2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.812
A, mm.	96.82
Product Weight	0.92
