14 - Plain BS Recessed Ferrule

14 - Plain BS Recessed Ferrule

Material Type
Size

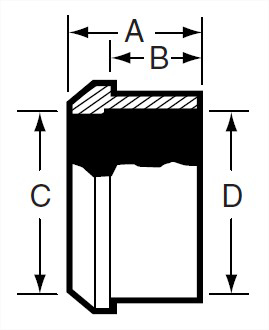

View Dimensions

Dimensions

14 - Plain BS Recessed Ferrule

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	0.906	23.01	1.812	0.07
1.5	0.968	24.59	2.406	0.15
2	1.062	26.97	3	0.26
2.5	1.187	30.15	3.593	0.4
3	1.281	32.54	4.187	0.53
4	1.5	38.1	5.437	0.87

Close

	VNE part number
OD Tube Size	316L
1	14-6L1.0
1.5	14-6L1.5
2	14-6L2.0
2.5	14-6L2.5
3	14-6L3.0
4	14-6L4.0

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Recessed
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.906
A, mm.	23.01
B, in.	1.812
Product Weight	0.07

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Recessed
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.968
A, mm.	24.59
B, in.	2.406
Product Weight	0.15

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Recessed
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.062
A, mm.	26.97
B, in.	3
Product Weight	0.26

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Recessed
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.187
A, mm.	30.15
B, in.	3.593
Product Weight	0.4

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Recessed
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.281
A, mm.	32.54
B, in.	4.187
Product Weight	0.53

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Recessed
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
B, in.	5.437
Product Weight	0.87

Click here to request 3D Step File
