E22I-14I - Male E-Line X Female NPT Adapter

E22I-14I - Male E-Line X Female NPT Adapter

Material Type
Size

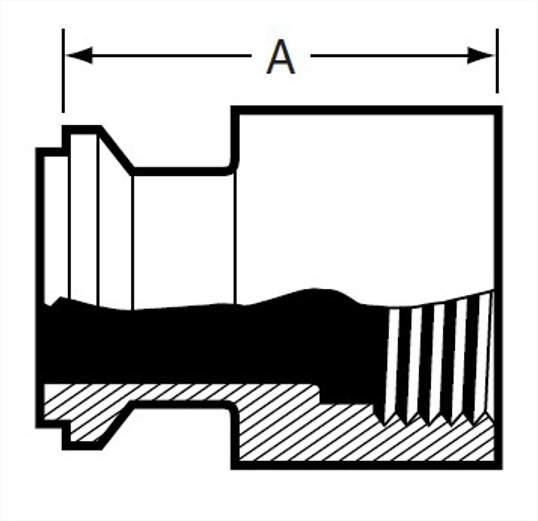

View Dimensions

Dimensions

E22I-14I - Male E-Line X Female NPT Adapter

OD Tube Size	A, in.	A, mm.	Product Weight
1	1.687	42.85	0.46
1.5	2.187	55.55	0.76
2	2.218	56.34	1
2.5	2.437	61.9	1.38
3	2.718	69.04	2.72
4	3.031	76.99	4.08

Close

	VNE part number
OD Tube Size	304	316L
1	E22I-14I1.0	E22I-14I-6L1.0
1.5	E22I-14I1.5	E22I-14I-6L1.5
2	E22I-14I2.0	E22I-14I-6L2.0
2.5	E22I-14I2.5	E22I-14I-6L2.5
3	E22I-14I3.0	E22I-14I-6L3.0
4	E22I-14I4.0	E22I-14I-6L4.0

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E22I-14I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.687
A, mm.	42.85
Product Weight	0.46

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E22I-14I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.187
A, mm.	55.55
Product Weight	0.76

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E22I-14I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.218
A, mm.	56.34
Product Weight	1

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E22I-14I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.437
A, mm.	61.9
Product Weight	1.38

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E22I-14I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.718
A, mm.	69.04
Product Weight	2.72

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E22I-14I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.031
A, mm.	76.99
Product Weight	4.08

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E22I-14I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.687
A, mm.	42.85
Product Weight	0.46

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E22I-14I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.187
A, mm.	55.55
Product Weight	0.76

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E22I-14I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.218
A, mm.	56.34
Product Weight	1

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E22I-14I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.437
A, mm.	61.9
Product Weight	1.38

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E22I-14I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.718
A, mm.	69.04
Product Weight	2.72

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E22I-14I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.031
A, mm.	76.99
Product Weight	4.08
