E17-14I-14I - Male E-Line X Male E-Line Adapter

E17-14I-14I - Male E-Line X Male E-Line Adapter

Material Type
Size

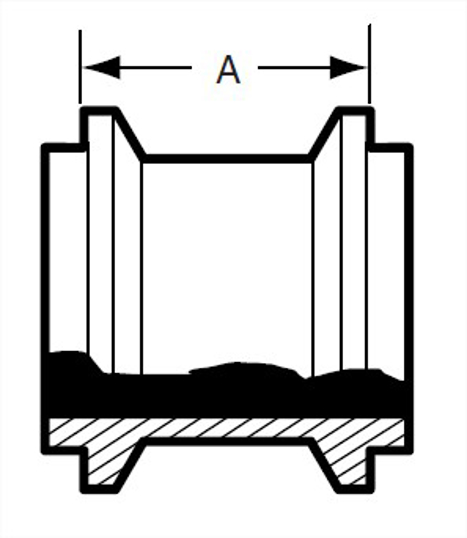

View Dimensions

Dimensions

E17-14I-14I - Male E-Line X Male E-Line Adapter

OD Tube Size	A, in.	A, mm.	Product Weight
1	1.187	30.15	0.4
1.5	1.5	38.1	0.44
2	1.562	39.67	0.68
2.5	1.687	42.85	1.04
3	1.812	46.02	1.4
4	2.062	52.37	2.08
6	1.625	41.28	--

Close

	VNE part number
OD Tube Size	304	316L
1	E17-14I-14I1.0	E17-14I-14I6L10
1.5	E17-14I-14I1.5	E17-14I-14I6L15
2	E17-14I-14I2.0	E17-14I-14I6L20
2.5	E17-14I-14I2.5	E17-14I-14I6L25
3	E17-14I-14I3.0	E17-14I-14I6L30
4	E17-14I-14I4.0	E17-14I-14I6L40
6	E17-14I-14I6.0	E17-14I-14I6L60

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-14I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.187
A, mm.	30.15
Product Weight	0.4

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-14I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
Product Weight	0.44

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-14I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.562
A, mm.	39.67
Product Weight	0.68

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-14I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.687
A, mm.	42.85
Product Weight	1.04

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-14I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.812
A, mm.	46.02
Product Weight	1.4

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-14I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.062
A, mm.	52.37
Product Weight	2.08

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.625
A, mm.	41.28

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-14I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.187
A, mm.	30.15
Product Weight	0.4

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-14I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
Product Weight	0.44

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-14I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.562
A, mm.	39.67
Product Weight	0.68

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-14I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.687
A, mm.	42.85
Product Weight	1.04

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-14I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.812
A, mm.	46.02
Product Weight	1.4

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-14I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.062
A, mm.	52.37
Product Weight	2.08

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.625
A, mm.	41.28
