EG2FTR - Clamp X Thread BS 90 Degree Elbow

Material Type
Size

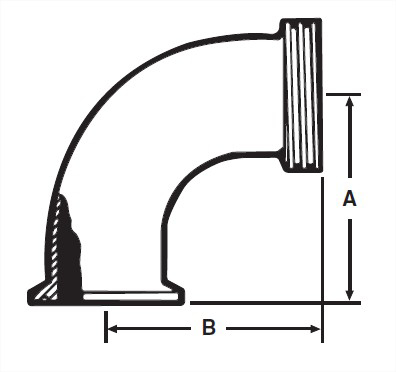

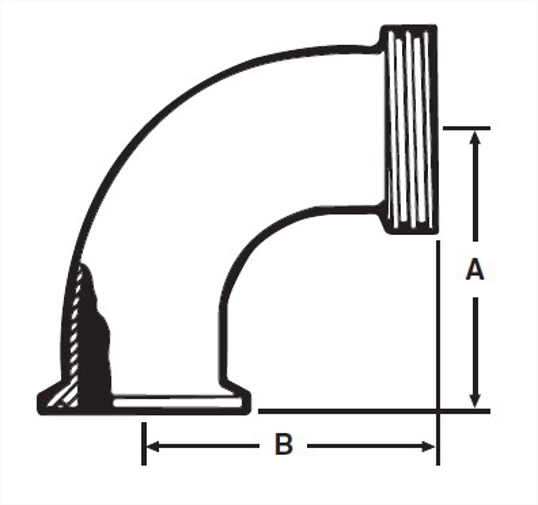

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	2	50.8	2.187	0.54
1.5	2.75	69.85	2.968	0.56
2	3.5	88.9	3.718	0.98
2.5	4.25	107.95	4.593	1.38
3	5	127	5.406	1.38
4	6.625	168.28	7.218	1.86

	VNE part number
OD Tube Size	304	316L
1	EG2FTR1.0	EG2FTR-6L1.0
1.5	EG2FTR1.5	EG2FTR-6L1.5
2	EG2FTR2.0	EG2FTR-6L2.0
2.5	EG2FTR2.5	EG2FTR-6L2.5
3	EG2FTR3.0	EG2FTR-6L3.0
4	EG2FTR4.0	EG2FTR-6L4.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-1-304
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	2
A, mm.	50.8
B, in.	2.187
Product Weight	0.54

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-1.5-304
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	2.75
A, mm.	69.85
B, in.	2.968
Product Weight	0.56

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-2-304
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	3.5
A, mm.	88.9
B, in.	3.718
Product Weight	0.98

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-2.5-304
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	4.25
A, mm.	107.95
B, in.	4.593
Product Weight	1.38

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-3-304
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	5
A, mm.	127
B, in.	5.406
Product Weight	1.38

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-4-304
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	6.625
A, mm.	168.28
B, in.	7.218
Product Weight	1.86

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-1-316
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	2
A, mm.	50.8
B, in.	2.187
Product Weight	0.54

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-1.5-316
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	2.75
A, mm.	69.85
B, in.	2.968
Product Weight	0.56

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-2-316
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	3.5
A, mm.	88.9
B, in.	3.718
Product Weight	0.98

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-2.5-316
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	4.25
A, mm.	107.95
B, in.	4.593
Product Weight	1.38

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-3-316
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	5
A, mm.	127
B, in.	5.406
Product Weight	1.38

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2FTR4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2FMP-15
Steel O’brien Part Number	2FMP-15-4-316
Wayland Part Number	W2FMP-15
Dixon Part Number	B2FMP-15
Sanitary Solutions Part Number	SS2FMP-15
Sanitube Part Number	2FMP-15
A, in.	6.625
A, mm.	168.28
B, in.	7.218
Product Weight	1.86
