E45BYWW - Weld End Ball Check Valve

E45BYWW - Weld End Ball Check Valve

Size
Seat Material

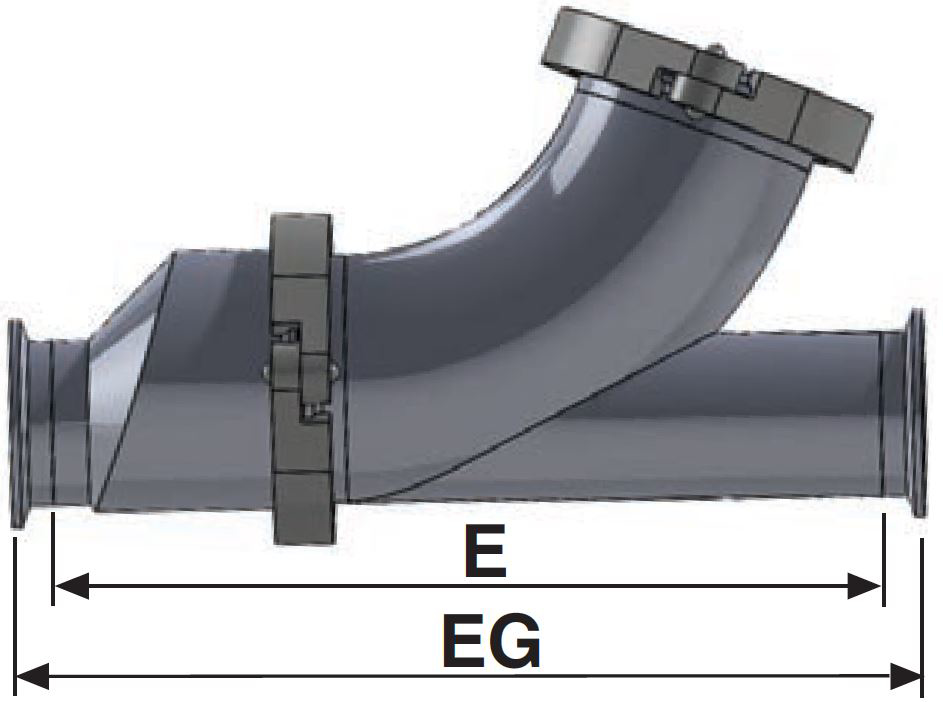

View Dimensions

Dimensions

E45BYWW - Weld End Ball Check Valve

OD Tube Size	O.A.L, in.	O.A.L., mm.	Product Weight
1.5	9	228.6	4.8
2	10	254	6.3
2.5	13.125	333.38	10.2
3	12.625	320.68	11.5

Close

BUNA

	VNE part number
OD Tube Size	316L
1.5	E45BYWW-61.5
2	E45BYWW-62.0
2.5	E45BYWW-62.5
3	E45BYWW-63.0

VITON

	VNE part number
OD Tube Size	316L
1.5	E45BYWW-61.5-V
2	E45BYWW-62.0-V
2.5	E45BYWW-62.5-V
3	E45BYWW-63.0-V

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
O.A.L, in.	9
O.A.L., mm.	228.6
Product Weight	4.8

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
O.A.L, in.	10
O.A.L., mm.	254
Product Weight	6.3

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
O.A.L, in.	13.125
O.A.L., mm.	333.38
Product Weight	10.2

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
O.A.L, in.	12.625
O.A.L., mm.	320.68
Product Weight	11.5

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
O.A.L, in.	9
O.A.L., mm.	228.6
Product Weight	4.8

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
O.A.L, in.	10
O.A.L., mm.	254
Product Weight	6.3

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
O.A.L, in.	13.125
O.A.L., mm.	333.38
Product Weight	10.2

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
O.A.L, in.	12.625
O.A.L., mm.	320.68
Product Weight	11.5
