E9WWWW - Weld Cross

Material Type
Size

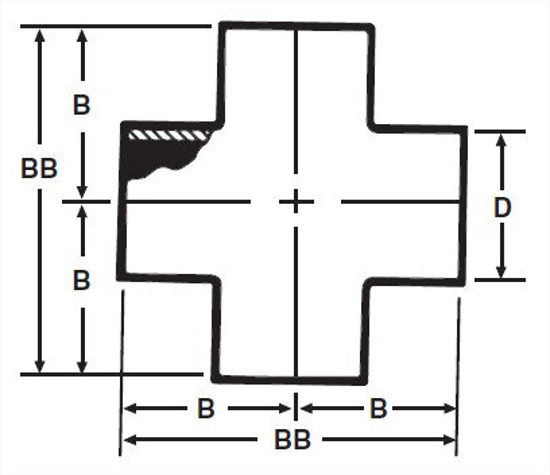

View Dimensions

Dimensions

OD Tube Size	B, in.	D, in.	D, mm.	T Nom Wall, in.	BB, in.	BB, mm.	Product Weight
1	1.125	1	25.4	0.065	2.25	57.15	0.18
1.5	1.656	1.5	38.1	0.065	3.312	84.12	0.38
2	2.062	2	50.8	0.065	4.125	104.78	0.66
2.5	2.343	2.5	63.5	0.065	4.687	119.05	0.76
3	2.593	3	76.2	0.065	5.187	131.75	1.16
4	3.437	4	101.6	0.083	6.875	174.63	2.52
6	5.625	6	152.4	0.109	11.25	285.75	--

	VNE part number
OD Tube Size	304	316L
1	E9WWWW1.0	E9WWWW-6L1.0
1.5	E9WWWW1.5	E9WWWW-6L1.5
2	E9WWWW2.0	E9WWWW-6L2.0
2.5	E9WWWW2.5	E9WWWW-6L2.5
3	E9WWWW3.0	E9WWWW-6L3.0
4	E9WWWW4.0	E9WWWW-6L4.0
6	E9WWWW6.0	E9WWWW-6L6.0

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-1-7-316
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
BB, in.	2.25
BB, mm.	57.15
Product Weight	0.18

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-1.5-7-316
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
Product Weight	0.38

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-2-7-316
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.66

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-2.5-7-316
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.76

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-3-7-316
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.16

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-4-7-316
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	3.437
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	6.875
BB, mm.	174.63
Product Weight	2.52

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-6-7-316
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	5.625
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
BB, in.	11.25
BB, mm.	285.75

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-1-7-304
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
BB, in.	2.25
BB, mm.	57.15
Product Weight	0.18

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-1.5-7-304
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
Product Weight	0.38

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-2-7-304
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.66

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-2.5-7-304
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.76

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-3-7-304
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.16

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-4-7-304
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	3.437
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	6.875
BB, mm.	174.63
Product Weight	2.52

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-6-7-304
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW
B, in.	5.625
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
BB, in.	11.25
BB, mm.	285.75
