7A - Thread BS X Plain BS w/13H Nut X Thread BS Tee

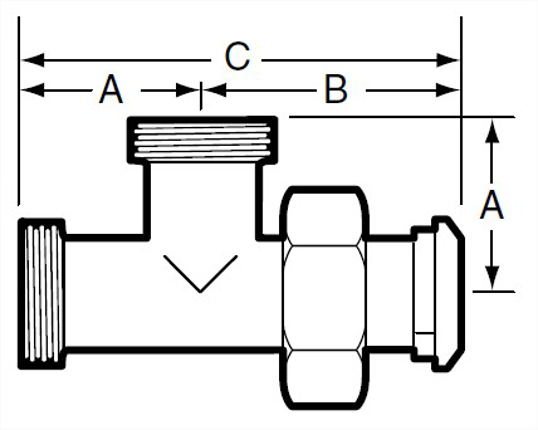

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1	1.182	30.02	2.5	4.313	109.55	0.8
1.5	2.375	60.33	3.125	5.5	139.7	1.6
2	2.781	70.64	3.562	6.343	161.11	2.5
2.5	3.187	80.95	4.062	7.25	184.15	3.76
3	3.5	88.9	4.312	7.812	198.42	5.16
4	4.656	118.26	5.375	10.031	254.79	9.24

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	1.182
A, mm.	30.02
B, in.	2.5
C, in.	4.313
C, mm.	109.55
Product Weight	0.8

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	2.375
A, mm.	60.33
B, in.	3.125
C, in.	5.5
C, mm.	139.7
Product Weight	1.6

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	2.781
A, mm.	70.64
B, in.	3.562
C, in.	6.343
C, mm.	161.11
Product Weight	2.5

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	3.187
A, mm.	80.95
B, in.	4.062
C, in.	7.25
C, mm.	184.15
Product Weight	3.76

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	3.5
A, mm.	88.9
B, in.	4.312
C, in.	7.812
C, mm.	198.42
Product Weight	5.16

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	4.656
A, mm.	118.26
B, in.	5.375
C, in.	10.031
C, mm.	254.79
Product Weight	9.24

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	1.182
A, mm.	30.02
B, in.	2.5
C, in.	4.313
C, mm.	109.55
Product Weight	0.8

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	2.375
A, mm.	60.33
B, in.	3.125
C, in.	5.5
C, mm.	139.7
Product Weight	1.6

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	2.781
A, mm.	70.64
B, in.	3.562
C, in.	6.343
C, mm.	161.11
Product Weight	2.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	3.187
A, mm.	80.95
B, in.	4.062
C, in.	7.25
C, mm.	184.15
Product Weight	3.76

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	3.5
A, mm.	88.9
B, in.	4.312
C, in.	7.812
C, mm.	198.42
Product Weight	5.16

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7B
Wayland Part Number	W7B
Dixon Part Number	B7B
Sanitary Solutions Part Number	SS7B
Sanitube Part Number	7B
A, in.	4.656
A, mm.	118.26
B, in.	5.375
C, in.	10.031
C, mm.	254.79
Product Weight	9.24
