E2KS - Weld 45 Degree Elbow with Tangents

E2KS - Weld 45 Degree Elbow with Tangents

Material Type
Size

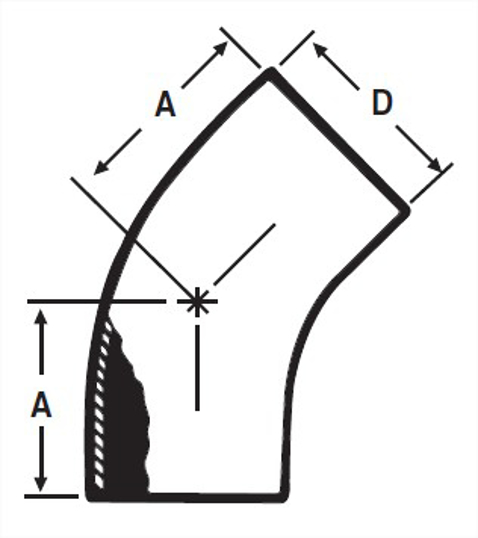

View Dimensions

Dimensions

E2KS - Weld 45 Degree Elbow with Tangents

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	E, in.	R, in.	T Nom Wall, in.	Product Weight
1	1.187	30.15	--	1	25.4	--	--	0.065	0.16
1.5	1.625	41.28	--	1.5	38.1	--	--	0.065	0.26
2	2.312	58.72	--	2	50.8	--	--	0.065	0.54
2.5	3	76.2	--	2.5	63.5	--	--	0.065	0.8
3	3.687	93.65	--	3	76.2	--	--	0.065	1.2
4	4.812	122.22	--	4	101.6	--	--	0.083	2.36
6	--	--	6	--	--	228.6	9	0.109	--
8	--	--	8	--	--	304.8	12	0.109	--
10	--	--	10	--	--	381	15	0.109	--
12	--	--	12	--	--	457.2	18	0.109	--

Close

	VNE part number
OD Tube Size	304	316L
1	E2KS1.0	E2KS-6L1.0
1.5	E2KS1.5	E2KS-6L1.5
2	E2KS2.0	E2KS-6L2.0
2.5	E2KS2.5	E2KS-6L2.5
3	E2KS3.0	E2KS-6L3.0
4	E2KS4.0	E2KS-6L4.0
6	E2KS6.0	E2KS-6L6.0
8	E2KS8.0	E2KS-6L8.0
10	E2KS10.0	E2KS-6L10.0
12	E2KS12.0	E2KS-6L12.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-1-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	1.187
A, mm.	30.15
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.16

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-1.5-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	1.625
A, mm.	41.28
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.26

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	2.312
A, mm.	58.72
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.54

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2.5-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	3
A, mm.	76.2
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.8

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-3-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	3.687
A, mm.	93.65
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.2

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KS4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-4-7-304
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	4.812
A, mm.	122.22
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	2.36

Cad Model File	Click here to request 3D Step File
ID / OD Polish	32 µin Mechanical
Industry Standard	3A
Material Test Reports	COC Available for 304 Materials
Material Type	304
Material-Type	304
Passivated	Special Request
Wall Thickness	0.109
T Nom Wall, in.	0.109
OD Tube Size	6
R, in.	9
Size	6
B, in.	6
E, in.	228.6

ID / OD Polish	32 µin Mechanical
Industry Standard	3A
Passivated	Special Request
Wall Thickness	0.109
T Nom Wall, in.	0.109
Material Test Reports	COC Available for 304 Materials
Material Type	304
Material-Type	304
OD Tube Size	8
R, in.	12
Size	8
B, in.	8
E, in.	304.8
Cad Model File	E2KS 8.0 REV1.STEP

ID / OD Polish	32 µin Mechanical
Industry Standard	3A
Passivated	Special Request
Wall Thickness	0.109
T Nom Wall, in.	0.109
Material Test Reports	COC Available for 304 Materials
Material Type	304
Material-Type	304
OD Tube Size	10
R, in.	15
Size	10
B, in.	10
E, in.	381
Cad Model File	E2KS 10.0 REV1.STEP

ID / OD Polish	32 µin Mechanical
Industry Standard	3A
Passivated	Special Request
Wall Thickness	0.109
T Nom Wall, in.	0.109
Material Test Reports	COC Available for 304 Materials
Material Type	304
Material-Type	304
OD Tube Size	12
R, in.	18
Size	12
B, in.	12
E, in.	457.2
Cad Model File	E2KS 12.0 REV1.STEP

Cad Model File	Click here to request 3D Step File
ID / OD Polish	32 µin Mechanical
Industry Standard	3A
Material Test Reports	MTR’s Available Upon Request
Material Type	316L
Material-Type	316L
Passivated	Special Request
Wall Thickness	0.109
T Nom Wall, in.	0.109
OD Tube Size	6
R, in.	9
Size	6
B, in.	6
E, in.	228.6

ID / OD Polish	32 µin Mechanical
Industry Standard	3A
Passivated	Special Request
Wall Thickness	0.109
T Nom Wall, in.	0.109
Material Test Reports	MTR’s Available Upon Request
Material Type	316L
Material-Type	316L
OD Tube Size	8
R, in.	12
Size	8
B, in.	8
E, in.	304.8
Cad Model File	E2KS 8.0 REV1.STEP

ID / OD Polish	32 µin Mechanical
Industry Standard	3A
Passivated	Special Request
Wall Thickness	0.109
T Nom Wall, in.	0.109
Material Test Reports	MTR’s Available Upon Request
Material Type	316L
Material-Type	316L
OD Tube Size	10
R, in.	15
Size	10
B, in.	10
E, in.	381
Cad Model File	E2KS 10.0 REV1.STEP

ID / OD Polish	32 µin Mechanical
Industry Standard	3A
Material Test Reports	MTR’s Available Upon Request
Material Type	316L
Material-Type	316L
Passivated	Special Request
Wall Thickness	0.109
T Nom Wall, in.	0.109
OD Tube Size	12
R, in.	18
Size	12
B, in.	12
E, in.	457.2
Cad Model File	E2KS 12.0 REV1.STEP

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-1-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	1.187
A, mm.	30.15
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.16

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-1.5-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	1.625
A, mm.	41.28
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.26

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	2.312
A, mm.	58.72
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.54

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2.5-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	3
A, mm.	76.2
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.8

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-3-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	3.687
A, mm.	93.65
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	2.36

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-4-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS
A, in.	4.812
A, mm.	122.22
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	2.36

Visit Neumo Ehrenberg Group

Questions? Call Toll Free: 1.800.356.1111

1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
[email protected] | 608-756-4930

3-A Sanitary Standards Authorized symbol
