E17WW - Weld X Schedule 5 Transition Piece

E17WW - Weld X Schedule 5 Transition Piece

Material Type
Size

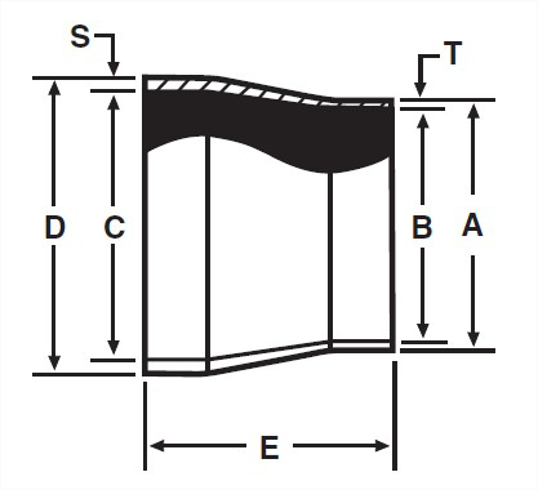

View Dimensions

Dimensions

E17WW - Weld X Schedule 5 Transition Piece

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	E, in.	E, mm.	S, in.	S, mm.	T Nom Wall, in.	Product Weight
0.5	0.5	12.7	0.37	0.71	18.03	0.84	21.34	1	25.4	0.065	1.65	0.065	0.005
0.75	0.75	19.05	0.62	0.92	23.37	1.05	26.67	1	25.4	0.065	1.65	0.065	--
1	1	25.4	0.87	1.185	30.1	1.315	33.4	1	25.4	0.065	1.65	0.065	0.073
1.5	1.5	38.1	1.37	1.77	44.96	1.9	48.26	1.5	38.1	0.065	1.65	0.065	0.164
2	2	50.8	1.87	2.245	57.02	2.375	60.33	1.5	38.1	0.065	1.65	0.065	0.227
2.5	2.5	63.5	2.37	2.709	68.81	2.875	73.03	1.5	38.1	0.083	2.11	0.065	--
3	3	76.2	2.87	3.334	84.68	3.5	88.9	2	50.8	0.083	2.11	0.065	0.453
4	4	101.6	3.834	4.334	110.08	4.5	114.3	2	50.8	0.083	2.11	0.083	0.672
6	6	152.4	5.782	6.407	162.74	6.625	168.28	3	76.2	0.109	2.77	0.109	2.023

Close

	VNE part number
OD Tube Size	316L
0.5	E17WW6L.5XSCH5
0.75	E17WW6L.75XSCH5
1	E17WW6L1.0XSCH5
1.5	E17WW6L1.5XSCH5
2	E17WW6L2.0XSCH5
2.5	E17WW6L2.5XSCH5
3	E17WW6L3.0XSCH5
4	E17WW6L4.0XSCH5
6	E17WW6L6.0XSCH5

Material Type	316L
Size	1
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW1.0XSCH5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1
A, mm.	25.4
B, in.	0.87
C, in.	1.185
C, mm.	30.1
D, in.	1.315
D, mm.	33.4
E, in.	1
E, mm.	25.4
S, in.	0.065
S, mm.	1.65
T Nom Wall, in.	0.065
Product Weight	0.073

Material Type	316L
Size	0.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW.5XSCH5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
B, in.	0.37
C, in.	0.71
C, mm.	18.03
D, in.	0.84
D, mm.	21.34
E, in.	1
E, mm.	25.4
S, in.	0.065
S, mm.	1.65
T Nom Wall, in.	0.065
Product Weight	0.005

Material Type	316L
Size	1.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW1.5XSCH5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
B, in.	1.37
C, in.	1.77
C, mm.	44.96
D, in.	1.9
D, mm.	48.26
E, in.	1.5
E, mm.	38.1
S, in.	0.065
S, mm.	1.65
T Nom Wall, in.	0.065
Product Weight	0.164

Material Type	316L
Size	2
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW2.0XSCH5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	1.87
C, in.	2.245
C, mm.	57.02
D, in.	2.375
D, mm.	60.33
E, in.	1.5
E, mm.	38.1
S, in.	0.065
S, mm.	1.65
T Nom Wall, in.	0.065
Product Weight	0.227

Material Type	316L
Size	2.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW2.5XSCH5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
B, in.	2.37
C, in.	2.709
C, mm.	68.81
D, in.	2.875
D, mm.	73.03
E, in.	1.5
E, mm.	38.1
S, in.	0.083
S, mm.	2.11
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	3.334
C, mm.	84.68
D, in.	3.5
D, mm.	88.9
E, in.	2
E, mm.	50.8
S, in.	0.083
S, mm.	2.11
T Nom Wall, in.	0.065
Product Weight	0.453

Material Type	316L
Size	0.75
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW.75XSCH5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	0.62
C, in.	0.92
C, mm.	23.37
D, in.	1.05
D, mm.	26.67
E, in.	1
E, mm.	25.4
S, in.	0.065
S, mm.	1.65
T Nom Wall, in.	0.065

Material Type	316L
Size	4
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW4.0XSCH5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4
A, mm.	101.6
B, in.	3.834
C, in.	4.334
C, mm.	110.08
D, in.	4.5
D, mm.	114.3
E, in.	2
E, mm.	50.8
S, in.	0.083
S, mm.	2.11
T Nom Wall, in.	0.083
Product Weight	0.672

Material Type	316L
Size	6
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW6.0XSCH5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6
A, mm.	152.4
B, in.	5.782
C, in.	6.407
C, mm.	162.74
D, in.	6.625
D, mm.	168.28
E, in.	3
E, mm.	76.2
S, in.	0.109
S, mm.	2.77
T Nom Wall, in.	0.109
Product Weight	2.023
