E31PW - Plain BS X Weld Concentric Reducer

Material Type
Size

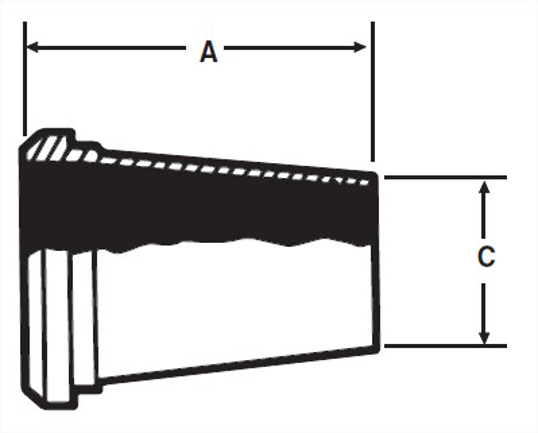

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	C, in.	C, mm.	T Nom Wall, in.	Product Weight
1.5X1.0	2.687	68.25	1	25.4	0.065	0.32
2.0X1.5	2.718	69.04	1.5	38.1	0.065	0.46
2.5X1.5	4.843	123.01	1.5	38.1	0.065	0.82
2.5X2.0	2.843	72.21	2	50.8	0.065	0.62
3.0X2.0	4.937	125.4	2	50.8	0.065	1.1
3.0X2.5	2.937	74.6	2.5	63.5	0.065	0.82
4.0X2.0	9	228.6	2	50.8	0.065	2.34
4.0X2.5	7	177.8	2.5	63.5	0.065	2.06
4.0X3.0	5	127	3	76.2	0.065	1.78

	VNE part number
OD Tube Size	304	316L
1.5X1.0	E31PW1.5X1.0	E31PW-6L1.5X1.0
2.0X1.5	E31PW2.0X1.5	E31PW-6L2.0X1.5
2.5X1.5	E31PW2.5X1.5	E31PW-6L2.5X1.5
2.5X2.0	E31PW2.5X2.0	E31PW-6L2.5X2.0
3.0X2.0	E31PW3.0X2.0	E31PW-6L3.0X2.0
3.0X2.5	E31PW3.0X2.5	E31PW-6L3.0X2.5
4.0X2.0	E31PW4.0X2.0	E31PW-6L4.0X2.0
4.0X2.5	E31PW4.0X2.5	E31PW-6L4.0X2.5
4.0X3.0	E31PW4.0X3.0	E31PW-6L4.0X3.0

Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31PW1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	2.687
A, mm.	68.25
C, in.	1
C, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.32

Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31PW2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	2.718
A, mm.	69.04
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.46

Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31PW3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	4.937
A, mm.	125.4
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.1

Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31PW3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	2.937
A, mm.	74.6
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.82

Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31PW4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	9
A, mm.	228.6
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	2.34

Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31PW4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	7
A, mm.	177.8
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	2.06

Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	2.687
A, mm.	68.25
C, in.	1
C, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.32

Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	2.718
A, mm.	69.04
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.46

Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	4.843
A, mm.	123.01
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.82

Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	2.843
A, mm.	72.21
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.62

Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	4.937
A, mm.	125.4
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.1

Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	2.937
A, mm.	74.6
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.82

Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	9
A, mm.	228.6
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	2.34

Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	7
A, mm.	177.8
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	2.06

Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	5
A, mm.	127
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.78

Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31PW4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	5
A, mm.	127
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.78

Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31PW2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	4.843
A, mm.	123.01
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.82

Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E31PW2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P
A, in.	2.843
A, mm.	72.21
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.62
