V14RH - Weld X Hose Barb Adapter

V14RH - Weld X Hose Barb Adapter

Material Type
Size

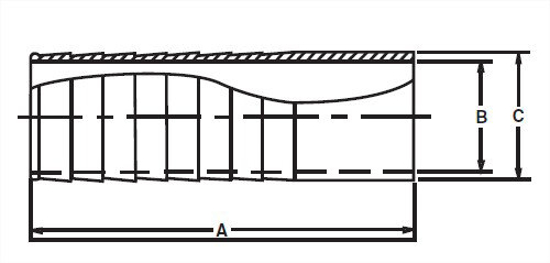

View Dimensions

Dimensions

V14RH - Weld X Hose Barb Adapter

OD Tube Size	Product Weight
0.25	--
0.3125	--
0.375	0.002
0.5	0.004
0.625	0.005
0.75	0.005
1	0.141
1.25	0.227
1.5	0.219
2	0.328
2.5	0.383
3	0.484
4	0.83
6	4.445

Close

	VNE part number
OD Tube Size	316L
0.25	V14RH-6L.25
0.3125	V14RH-6L.3125
0.375	V14RH-6L.375
0.5	V14RH-6L.5
0.625	V14RH-6L.625
0.75	V14RH-6L.75
1	V14RH-6L1.0
1.25	V14RH-6L1.25
1.5	V14RH-6L1.5
2	V14RH-6L2.0
2.5	V14RH-6L2.5
3	V14RH-6L3.0
4	V14RH-6L4.0
6	V14RH-6L6.0

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.25
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	0.25
Wall Thickness	0.035
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.3125
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	0.3125
Wall Thickness	0.035
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.375
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	0.375
Wall Thickness	0.035
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.002

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.5
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.004

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.625
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	0.625
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.005

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.75
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.005

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.141

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.25
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.227

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.219

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.328

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.383

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.484

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	0.83

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
ID / OD Polish	Unpolished ID / Unpolished OD
Connections	Weld X Hose Barb
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	4.445

Click here to request 3D Step File
