E7CCW - Clamp X Clamp X Weld Tee

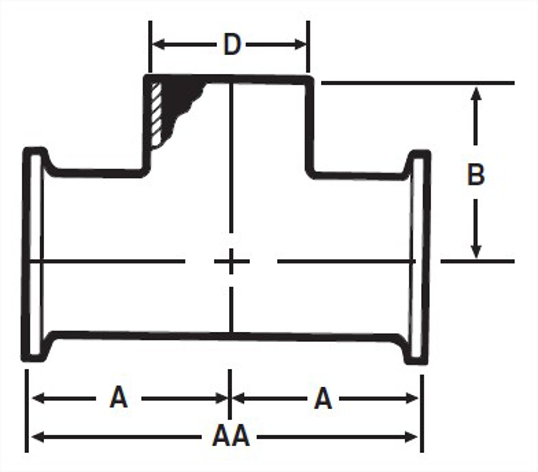

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	T Nom Wall, in.	AA, in.	AA, mm.	Product Weight
1	1.625	41.28	1.125	1	25.4	0.065	3.25	82.55	0.42
1.5	2.562	65.07	1.656	1.5	38.1	0.065	4.312	109.52	0.54
2	2.562	65.07	2.062	2	50.8	0.065	5.125	130.18	0.86
2.5	2.843	72.21	2.343	2.5	63.5	0.065	5.687	144.45	1.06
3	3.093	78.56	2.593	3	76.2	0.065	6.187	157.15	1.46
4	4.25	107.95	3.625	4	101.6	0.083	8.5	215.9	3.12
6	6.5	165.1	5.625	6	152.4	0.109	13	330.2	--

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7CCW1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-1-7-304
A, in.	1.625
A, mm.	41.28
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AA, in.	3.25
AA, mm.	82.55
Product Weight	0.42

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7CCW1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-1.5-7-304
A, in.	2.562
A, mm.	65.07
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
AA, in.	4.312
AA, mm.	109.52
Product Weight	0.54

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7CCW2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-2-7-304
A, in.	2.562
A, mm.	65.07
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
AA, in.	5.125
AA, mm.	130.18
Product Weight	0.86

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7CCW2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-2.5-7-304
A, in.	2.843
A, mm.	72.21
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AA, in.	5.687
AA, mm.	144.45
Product Weight	1.06

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7CCW3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-3-7-304
A, in.	3.093
A, mm.	78.56
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
AA, in.	6.187
AA, mm.	157.15
Product Weight	1.46

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7CCW4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-4-7-304
A, in.	4.25
A, mm.	107.95
B, in.	3.625
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
AA, in.	8.5
AA, mm.	215.9
Product Weight	3.12

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7CCW6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-6-7-304
A, in.	6.5
A, mm.	165.1
B, in.	5.625
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
AA, in.	13
AA, mm.	330.2

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7CCW1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-1-7-316
A, in.	1.625
A, mm.	41.28
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AA, in.	3.25
AA, mm.	82.55
Product Weight	0.42

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7CCW1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-1.5-7-316
A, in.	2.562
A, mm.	65.07
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
AA, in.	4.312
AA, mm.	109.52
Product Weight	0.54

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7CCW2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-2-7-316
A, in.	2.562
A, mm.	65.07
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
AA, in.	5.125
AA, mm.	130.18
Product Weight	0.86

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7CCW2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-2.5-7-316
A, in.	2.843
A, mm.	72.21
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AA, in.	5.687
AA, mm.	144.45
Product Weight	1.06

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7CCW3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-3-7-316
A, in.	3.093
A, mm.	78.56
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
AA, in.	6.187
AA, mm.	157.15
Product Weight	1.46

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7CCW4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-4-7-316
A, in.	4.25
A, mm.	107.95
B, in.	3.625
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
AA, in.	8.5
AA, mm.	215.9
Product Weight	3.12

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7CCW6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-6-7-316
A, in.	6.5
A, mm.	165.1
B, in.	5.625
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
AA, in.	13
AA, mm.	330.2
