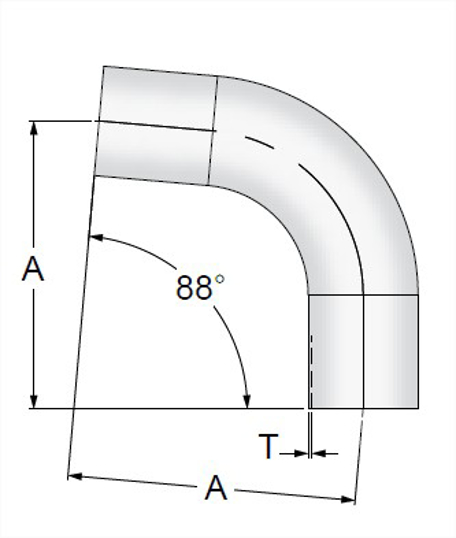

| OD Tube Size | A, in. | A, mm. | Product Weight |
|---|---|---|---|
| 0.5 |
|
|
|
| 0.75 |
|
|
|
| 1 |
|
|
|
| 1.5 |
|
|
|
| 2 |
|
|
|
| 2.5 |
|
|
|
| 3 |
|
|
|
| 4 |
|
|
|
| 6 |
|
|
|
| VNE part number | |
|---|---|
| OD Tube Size | 316L |
| 0.5 | TE2S886L.5-PC |
| 0.75 | TE2S886L.75-PC |
| 1 | TE2S886L1.0-PC |
| 1.5 | TE2S886L1.5-PC |
| 2 | TE2S886L2.0-PC |
| 2.5 | TE2S886L2.5-PC |
| 3 | TE2S886L3.0-PC |
| 4 | TE2S886L4.0-PC |
| 6 | TE2S886L6.0-PC |
| VNE part number | |
|---|---|
| OD Tube Size | 316L |
| 0.5 | TE2S886L.5-PD |
| 0.75 | TE2S886L.75-PD |
| 1 | TE2S886L1.0-PD |
| 1.5 | TE2S886L1.5-PD |
| 2 | TE2S886L2.0-PD |
| 2.5 | TE2S886L2.5-PD |
| 3 | TE2S886L3.0-PD |
| 4 | TE2S886L4.0-PD |
| 6 | TE2S886L6.0-PD |
| VNE part number | |
|---|---|
| OD Tube Size | 316L |
| 0.5 | TE2S886L.5-PL |
| 0.75 | TE2S886L.75-PL |
| 1 | TE2S886L1.0-PL |
| 1.5 | TE2S886L1.5-PL |
| 2 | TE2S886L2.0-PL |
| 2.5 | TE2S886L2.5-PL |
| 3 | TE2S886L3.0-PL |
| 4 | TE2S886L4.0-PL |
| 6 | TE2S886L6.0-PL |
| VNE part number | |
|---|---|
| OD Tube Size | 316L |
| 0.5 | TE2S886L.5-PM |
| 0.75 | TE2S886L.75-PM |
| 1 | TE2S886L1.0-PM |
| 1.5 | TE2S886L1.5-PM |
| 2 | TE2S886L2.0-PM |
| 2.5 | TE2S886L2.5-PM |
| 3 | TE2S886L3.0-PM |
| 4 | TE2S886L4.0-PM |
| 6 | TE2S886L6.0-PM |
| Size | 0.5 |
| Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PM |
| SF Number | SF4 |
| OD Tube Size | 0.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.06 |
| A, mm. | 77.72 |
| Product Weight | 0.15 |
| Size | 0.75 |
| Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PM |
| SF Number | SF4 |
| OD Tube Size | 0.75 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L.75-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.06 |
| A, mm. | 77.72 |
| Product Weight | 0.243 |
| Size | 1 |
| Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PM |
| SF Number | SF4 |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L1.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.05 |
| A, mm. | 77.47 |
| Product Weight | 0.302 |
| Size | 1.5 |
| Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PM |
| SF Number | SF4 |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L1.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.8 |
| A, mm. | 96.52 |
| Product Weight | 0.547 |
| Size | 2 |
| Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PM |
| SF Number | SF4 |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L2.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 4.81 |
| A, mm. | 122.17 |
| Product Weight | 0.97 |
| Size | 2.5 |
| Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PM |
| SF Number | SF4 |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L2.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 5.56 |
| A, mm. | 141.22 |
| Product Weight | 1.362 |
| Size | 3 |
| Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PM |
| SF Number | SF4 |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L3.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 6.31 |
| A, mm. | 160.27 |
| Product Weight | 1.896 |
| Size | 4 |
| Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PM |
| SF Number | SF4 |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L4.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 8.07 |
| A, mm. | 204.98 |
| Product Weight | 3.814 |
| Cad Model File | Click here to request 3D Step File |
| Size | 6 |
| Surface Finish | PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PM |
| SF Number | SF4 |
| OD Tube Size | 6 |
| Wall Thickness | 0.109 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, mm. | 0 |
| Product Weight | 11.2 |
| Cad Model File | Click here to request 3D Step File |
| Size | 6 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 6 |
| Wall Thickness | 0.109 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, mm. | 0 |
| Product Weight | 11.2 |
| Size | 4 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L4.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 8.07 |
| A, mm. | 204.98 |
| Product Weight | 3.862 |
| Size | 3 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L3.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 6.31 |
| A, mm. | 160.27 |
| Product Weight | 1.896 |
| Size | 2.5 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L2.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 5.56 |
| A, mm. | 141.22 |
| Product Weight | 1.448 |
| Size | 2 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L2.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 4.81 |
| A, mm. | 122.17 |
| Product Weight | 0.97 |
| Size | 1.5 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L1.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.8 |
| A, mm. | 96.52 |
| Product Weight | 0.551 |
| Size | 1 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L1.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.05 |
| A, mm. | 77.47 |
| Product Weight | 0.304 |
| Size | 0.75 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 0.75 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L.75-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.06 |
| A, mm. | 77.72 |
| Product Weight | 0.243 |
| Size | 0.5 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 0.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.06 |
| A, mm. | 77.72 |
| Product Weight | 0.15 |
| Size | 0.75 |
| Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
| Polish Code | PD |
| SF Number | SF4 |
| OD Tube Size | 0.75 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L.75-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.06 |
| A, mm. | 77.72 |
| Product Weight | 0.247 |
| Size | 0.5 |
| Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
| Polish Code | PD |
| SF Number | SF4 |
| OD Tube Size | 0.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.06 |
| A, mm. | 77.72 |
| Product Weight | 0.15 |
| Size | 1 |
| Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
| Polish Code | PD |
| SF Number | SF4 |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L1.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.05 |
| A, mm. | 77.47 |
| Product Weight | 0.306 |
| Size | 1.5 |
| Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
| Polish Code | PD |
| SF Number | SF4 |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L1.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.8 |
| A, mm. | 96.52 |
| Product Weight | 0.681 |
| Size | 2 |
| Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
| Polish Code | PD |
| SF Number | SF4 |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L2.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 4.81 |
| A, mm. | 122.17 |
| Product Weight | 0.97 |
| Size | 2.5 |
| Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
| Polish Code | PD |
| SF Number | SF4 |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L2.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 5.56 |
| A, mm. | 141.22 |
| Product Weight | 1.365 |
| Size | 3 |
| Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
| Polish Code | PD |
| SF Number | SF4 |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L3.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 6.31 |
| A, mm. | 160.27 |
| Product Weight | 1.841 |
| Size | 4 |
| Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
| Polish Code | PD |
| SF Number | SF4 |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L4.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 8.07 |
| A, mm. | 204.98 |
| Product Weight | 3.825 |
| Cad Model File | Click here to request 3D Step File |
| Size | 6 |
| Surface Finish | PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 15 µin Electropolished ID / Light Polish OD |
| Polish Code | PD |
| SF Number | SF4 |
| OD Tube Size | 6 |
| Wall Thickness | 0.109 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, mm. | 0 |
| Product Weight | 11.2 |
| Cad Model File | Click here to request 3D Step File |
| Size | 6 |
| Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
| Polish Code | PC |
| SF Number | SF1 |
| OD Tube Size | 6 |
| Wall Thickness | 0.109 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, mm. | 0 |
| Product Weight | 11.2 |
| Size | 4 |
| Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
| Polish Code | PC |
| SF Number | SF1 |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L4.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 8.07 |
| A, mm. | 204.98 |
| Product Weight | 3.818 |
| Size | 3 |
| Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
| Polish Code | PC |
| SF Number | SF1 |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L3.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 6.31 |
| A, mm. | 160.27 |
| Product Weight | 1.927 |
| Size | 2.5 |
| Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
| Polish Code | PC |
| SF Number | SF1 |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L2.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 5.56 |
| A, mm. | 141.22 |
| Product Weight | 1.418 |
| Size | 2 |
| Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
| Polish Code | PC |
| SF Number | SF1 |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L2.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 4.81 |
| A, mm. | 122.17 |
| Product Weight | 0.939 |
| Size | 1.5 |
| Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
| Polish Code | PC |
| SF Number | SF1 |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L1.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.8 |
| A, mm. | 96.52 |
| Product Weight | 0.569 |
| Size | 0.5 |
| Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
| Polish Code | PC |
| SF Number | SF1 |
| OD Tube Size | 0.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L.5-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.06 |
| A, mm. | 77.72 |
| Product Weight | 0.15 |
| Size | 0.75 |
| Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
| Polish Code | PC |
| SF Number | SF1 |
| OD Tube Size | 0.75 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L.75-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.06 |
| A, mm. | 77.72 |
| Product Weight | 0.249 |
| Size | 1 |
| Surface Finish | PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD |
| Industry Standard | BPE;3A |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / Light Polish OD |
| Polish Code | PC |
| SF Number | SF1 |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2S886L1.0-...STEP |
| Catalog File | MaxPure BPE Fittings.pdf |
| Specification Document | VNE Maxpure Fittings Specifications and Submittal Documentation.pdf |
| A, in. | 3.05 |
| A, mm. | 77.47 |
| Product Weight | 0.295 |
1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930
