E17-14I-15I - Male E-Line X Female E-Line Adapter

E17-14I-15I - Male E-Line X Female E-Line Adapter

Material Type
Size

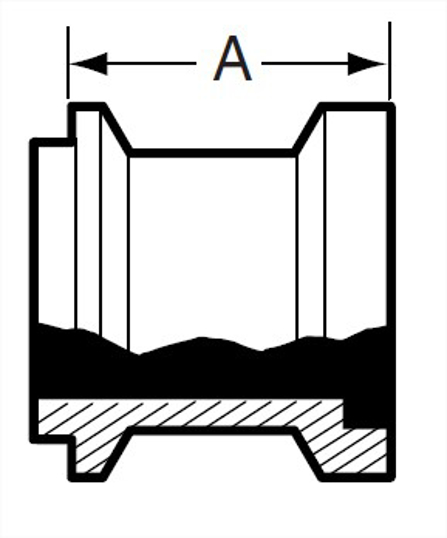

View Dimensions

Dimensions

E17-14I-15I - Male E-Line X Female E-Line Adapter

OD Tube Size	A, in.	A, mm.	Product Weight
1	1.375	34.93	0.38
1.5	1.687	42.85	0.52
2	1.812	46.02	0.82
2.5	1.937	49.2	1.14
3	2.125	53.98	1.48
4	2.375	60.33	2.18
6	1.937	49.2	--

Close

	VNE part number
OD Tube Size	304	316L
1	E17-14I-15I1.0	E17-14I-15I6L10
1.5	E17-14I-15I1.5	E17-14I-15I6L15
2	E17-14I-15I2.0	E17-14I-15I6L20
2.5	E17-14I-15I2.5	E17-14I-15I6L25
3	E17-14I-15I3.0	E17-14I-15I6L30
4	E17-14I-15I4.0	E17-14I-15I6L40
6	E17-14I-15I6.0	E17-14I-15I6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-15I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.375
A, mm.	34.93
Product Weight	0.38

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-15I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.687
A, mm.	42.85
Product Weight	0.52

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-15I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.812
A, mm.	46.02
Product Weight	0.82

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-15I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.937
A, mm.	49.2
Product Weight	1.14

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-15I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.125
A, mm.	53.98
Product Weight	1.48

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-14I-15I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.375
A, mm.	60.33
Product Weight	2.18

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.937
A, mm.	49.2

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-15I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.375
A, mm.	34.93
Product Weight	0.38

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-15I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.687
A, mm.	42.85
Product Weight	0.52

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-15I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.812
A, mm.	46.02
Product Weight	0.82

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-15I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.937
A, mm.	49.2
Product Weight	1.14

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-15I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.125
A, mm.	53.98
Product Weight	1.48

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-14I-15I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.375
A, mm.	60.33
Product Weight	2.18

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.937
A, mm.	49.2

Click here to request 3D Step File

Click here to request 3D Step File
