E16AI-15I - Female E-Line Solid End Cap

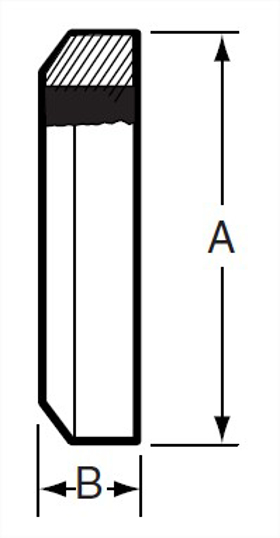

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	2	50.8	0.5	0.24
1.5	2	50.8	0.5	0.34
2	2.62	66.55	0.687	0.64
2.5	3.312	84.12	0.75	1.04
3	3.875	98.43	0.75	1.42
4	4.875	123.83	0.75	2.22
6	7.5	190.5	0.75	--

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-15I1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	2
A, mm.	50.8
B, in.	0.5
Product Weight	0.24

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-15I1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	2
A, mm.	50.8
B, in.	0.5
Product Weight	0.34

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-15I2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	2.62
A, mm.	66.55
B, in.	0.687
Product Weight	0.64

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-15I2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	3.312
A, mm.	84.12
B, in.	0.75
Product Weight	1.04

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-15I3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	3.875
A, mm.	98.43
B, in.	0.75
Product Weight	1.42

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-15I4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	4.875
A, mm.	123.83
B, in.	0.75
Product Weight	2.22

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	7.5
A, mm.	190.5
B, in.	0.75

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-15I1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	2
A, mm.	50.8
B, in.	0.5
Product Weight	0.24

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-15I1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	2
A, mm.	50.8
B, in.	0.5
Product Weight	0.34

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-15I2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	2.62
A, mm.	66.55
B, in.	0.687
Product Weight	0.64

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-15I2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	3.312
A, mm.	84.12
B, in.	0.75
Product Weight	1.04

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-15I3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	3.875
A, mm.	98.43
B, in.	0.75
Product Weight	1.42

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-15I4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	4.875
A, mm.	123.83
B, in.	0.75
Product Weight	2.22

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I
A, in.	7.5
A, mm.	190.5
B, in.	0.75
