EG14W - Heavy Wall Tank Ferrule

Material Type
Size

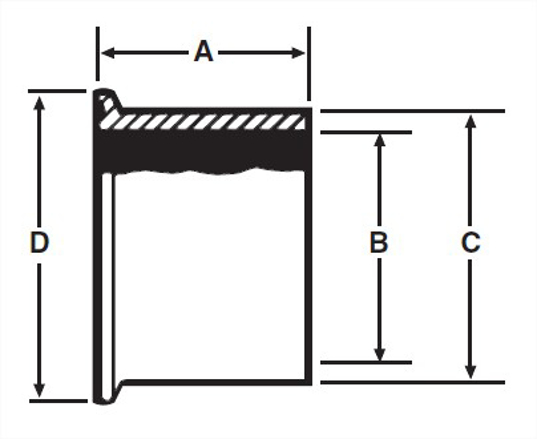

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	Product Weight
1	1.625	41.28	0.87	1.16	29.46	1.984	50.39	0.32
1.5	1.625	41.28	1.37	1.676	42.57	1.984	50.39	0.36
2	1.75	44.45	1.87	2.192	55.68	2.516	63.91	0.56
2.5	1.75	44.45	2.37	2.708	68.78	3.047	77.39	0.72
3	1.812	46.02	2.387	3.224	81.89	3.579	90.91	0.94
4	2.125	53.98	3.834	4.256	108.1	4.682	118.92	1.74
6	4.25	107.95	5.782	6.5	165.1	6.57	166.88	--

	VNE part number
OD Tube Size	304	316L
1	EG14W1.0	EG14W-6L1.0
1.5	EG14W1.5	EG14W-6L1.5
2	EG14W2.0	EG14W-6L2.0
2.5	EG14W2.5	EG14W-6L2.5
3	EG14W3.0	EG14W-6L3.0
4	EG14W4.0	EG14W-6L4.0
6	EG14W6.0	EG14W-6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-1-304
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.625
A, mm.	41.28
B, in.	0.87
C, in.	1.16
C, mm.	29.46
D, in.	1.984
D, mm.	50.39
Product Weight	0.32

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-1.5-304
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.625
A, mm.	41.28
B, in.	1.37
C, in.	1.676
C, mm.	42.57
D, in.	1.984
D, mm.	50.39
Product Weight	0.36

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-2-304
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.75
A, mm.	44.45
B, in.	1.87
C, in.	2.192
C, mm.	55.68
D, in.	2.516
D, mm.	63.91
Product Weight	0.56

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-2.5-304
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.75
A, mm.	44.45
B, in.	2.37
C, in.	2.708
C, mm.	68.78
D, in.	3.047
D, mm.	77.39
Product Weight	0.72

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-3-304
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.812
A, mm.	46.02
B, in.	2.387
C, in.	3.224
C, mm.	81.89
D, in.	3.579
D, mm.	90.91
Product Weight	0.94

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-4-304
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	2.125
A, mm.	53.98
B, in.	3.834
C, in.	4.256
C, mm.	108.1
D, in.	4.682
D, mm.	118.92
Product Weight	1.74

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-6-304
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	4.25
A, mm.	107.95
B, in.	5.782
C, in.	6.5
C, mm.	165.1
D, in.	6.57
D, mm.	166.88

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-1-316
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.625
A, mm.	41.28
B, in.	0.87
C, in.	1.16
C, mm.	29.46
D, in.	1.984
D, mm.	50.39
Product Weight	0.32

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-1.5-316
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.625
A, mm.	41.28
B, in.	1.37
C, in.	1.676
C, mm.	42.57
D, in.	1.984
D, mm.	50.39
Product Weight	0.36

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-2-316
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.75
A, mm.	44.45
B, in.	1.87
C, in.	2.192
C, mm.	55.68
D, in.	2.516
D, mm.	63.91
Product Weight	0.56

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-2.5-316
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.75
A, mm.	44.45
B, in.	2.37
C, in.	2.708
C, mm.	68.78
D, in.	3.047
D, mm.	77.39
Product Weight	0.72

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-3-316
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	1.812
A, mm.	46.02
B, in.	2.387
C, in.	3.224
C, mm.	81.89
D, in.	3.579
D, mm.	90.91
Product Weight	0.94

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14W4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-4-316
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	2.125
A, mm.	53.98
B, in.	3.834
C, in.	4.256
C, mm.	108.1
D, in.	4.682
D, mm.	118.92
Product Weight	1.74

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPW
Steel O’brien Part Number	14MPW-6-316
Wayland Part Number	W14MPW
Dixon Part Number	14MPW
Sanitary Solutions Part Number	SS14MPW
Sanitube Part Number	14MPW
A, in.	4.25
A, mm.	107.95
B, in.	5.782
C, in.	6.5
C, mm.	165.1
D, in.	6.57
D, mm.	166.88
