TE7WWW88 - BPE AWF 88 Degree Branch Tee MaxPure 316L

Size
Surface Finish

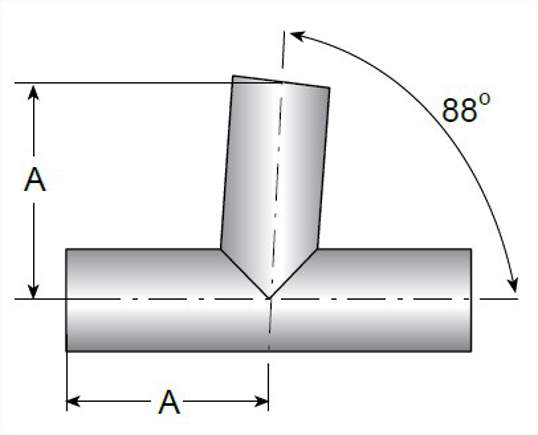

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
0.5	--	0	0.154
0.75	--	0	0.253
1	2.125	53.98	0.352
1.5	2.375	60.33	0.561
2	2.875	73.03	0.924
2.5	3.125	79.38	1.243
3	3.375	85.73	1.594
4	4.125	104.78	3.025
6	--	0	8

PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD

	VNE part number
OD Tube Size	316L
0.5	TE7WWW886L.5-PC
0.75	TE7WWW886L.75-PC
1	TE7WWW886L1.0-PC
1.5	TE7WWW886L1.5-PC
2	TE7WWW886L2.0-PC
2.5	TE7WWW886L2.5-PC
3	TE7WWW886L3.0-PC
4	TE7WWW886L4.0-PC
6	TE7WWW886L6.0-PC

PD Finish - SF4 - 15 µin Electropolished ID / Light Polish OD

	VNE part number
OD Tube Size	316L
0.5	TE7WWW886L.5-PD
0.75	TE7WWW886L.75-PD
1	TE7WWW886L1.0-PD
1.5	TE7WWW886L1.5-PD
2	TE7WWW886L2.0-PD
2.5	TE7WWW886L2.5-PD
3	TE7WWW886L3.0-PD
4	TE7WWW886L4.0-PD
6	TE7WWW886L6.0-PD

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	316L
0.5	TE7WWW886L.5-PL
0.75	TE7WWW886L.75-PL
1	TE7WWW886L1.0-PL
1.5	TE7WWW886L1.5-PL
2	TE7WWW886L2.0-PL
2.5	TE7WWW886L2.5-PL
3	TE7WWW886L3.0-PL
4	TE7WWW886L4.0-PL
6	TE7WWW886L6.0-PL

PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	316L
0.5	TE7WWW886L.5-PM
0.75	TE7WWW886L.75-PM
1	TE7WWW886L1.0-PM
1.5	TE7WWW886L1.5-PM
2	TE7WWW886L2.0-PM
2.5	TE7WWW886L2.5-PM
3	TE7WWW886L3.0-PM
4	TE7WWW886L4.0-PM
6	TE7WWW886L6.0-PM

Cad Model File	Click here to request 3D Step File
Size	0.5
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	BPE;3A
BPE Table #	N/A
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf
