Product configuration selected is not available or discontinued. Please review the chart below to see available product configurations or try to select a different material type/size option

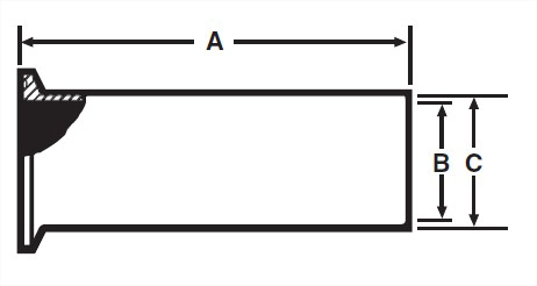

| OD Tube Size | A, in. | A, mm. | B, in. | C, in. | C, mm. | Product Weight |
|---|---|---|---|---|---|---|
| 1 |
|
|
|
|
|
|
| 1.5 |
|
|
|
|
|
|
| 2 |
|
|
|
|
|
|
| 2.5 |
|
|
|
|
|
|
| 3 |
|
|
|
|
|
|
| 4 |
|
|
|
|
|
|
| VNE part number | ||
|---|---|---|
| OD Tube Size | 304 | 316L |
| 1 | EG14HT1.0 | EG14HT-6L1.0 |
| 1.5 | EG14HT1.5 | EG14HT-6L1.5 |
| 2 | EG14HT2.0 | EG14HT-6L2.0 |
| 2.5 | EG14HT2.5 | EG14HT-6L2.5 |
| 3 | EG14HT3.0 | EG14HT-6L3.0 |
| 4 | EG14HT4.0 | EG14HT-6L4.0 |
| Material Type | 304 |
| Size | 1 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT1.0.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-1-304 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 0.87 |
| C, in. | 1 |
| C, mm. | 25.4 |
| Product Weight | 0.38 |
| Material Type | 304 |
| Size | 1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT1.5.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-1.5-304 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 1.37 |
| C, in. | 1.5 |
| C, mm. | 38.1 |
| Product Weight | 0.42 |
| Material Type | 304 |
| Size | 2 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT2.0.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-2-304 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 1.87 |
| C, in. | 2 |
| C, mm. | 50.8 |
| Product Weight | 0.58 |
| Material Type | 304 |
| Size | 2.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT2.5.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-2.5-304 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 2.37 |
| C, in. | 2.5 |
| C, mm. | 63.5 |
| Product Weight | 0.74 |
| Material Type | 304 |
| Size | 3 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT3.0.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-3-304 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 2.87 |
| C, in. | 3 |
| C, mm. | 76.2 |
| Product Weight | 0.92 |
| Material Type | 304 |
| Size | 4 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT4.0.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-4-304 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.625 |
| A, mm. | 117.48 |
| B, in. | 3.834 |
| C, in. | 4 |
| C, mm. | 101.6 |
| Product Weight | 1.4 |
| Material Type | 316L |
| Size | 1 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT1.0.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-1-316 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 0.87 |
| C, in. | 1 |
| C, mm. | 25.4 |
| Product Weight | 0.38 |
| Material Type | 316L |
| Size | 1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT1.5.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-1.5-316 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 1.37 |
| C, in. | 1.5 |
| C, mm. | 38.1 |
| Product Weight | 0.42 |
| Material Type | 316L |
| Size | 3 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT3.0.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-3-316 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 2.87 |
| C, in. | 3 |
| C, mm. | 76.2 |
| Product Weight | 0.92 |
| Material Type | 316L |
| Size | 4 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT4.0.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-4-316 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.625 |
| A, mm. | 117.48 |
| B, in. | 3.834 |
| C, in. | 4 |
| C, mm. | 101.6 |
| Product Weight | 1.4 |
| Material Type | 316L |
| Size | 2 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT2.0.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-2-316 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 1.87 |
| C, in. | 2 |
| C, mm. | 50.8 |
| Product Weight | 0.58 |
| Material Type | 316L |
| Size | 2.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Weld |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Cad Model File | EG14HT2.5.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 14MPHT |
| Steel O’brien Part Number | 14MPHT-2.5-316 |
| Wayland Part Number | W14MPHT |
| Dixon Part Number | 14MPHT |
| Sanitary Solutions Part Number | SS14MPHT |
| Sanitube Part Number | 14MPHT |
| A, in. | 4.5 |
| A, mm. | 114.3 |
| B, in. | 2.37 |
| C, in. | 2.5 |
| C, mm. | 63.5 |
| Product Weight | 0.74 |
