13MHHMD-H - Double Hinged Heavy Duty Clamp

13MHHMD-H - Double Hinged Heavy Duty Clamp

Size

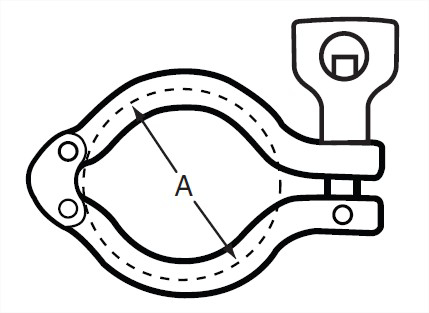

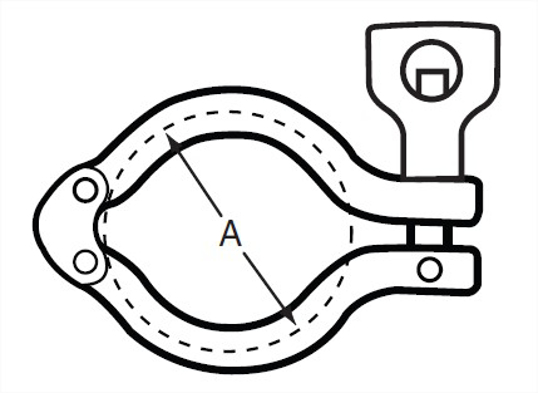

View Dimensions

Dimensions

13MHHMD-H - Double Hinged Heavy Duty Clamp

OD Tube Size	A, in.	A, mm.	Product Weight
1.5	2.122	53.9	0.66
2	2.654	67.41	0.75
2.5	3.185	80.9	--
3	3.717	94.41	0.92
4	4.82	122.43	1.1

Close

	VNE part number
OD Tube Size	304
1.5	13MHHMD1.5-H
2	13MHHMD2.0-H
2.5	13MHHMD2.5-H
3	13MHHMD3.0-H
4	13MHHMD4.0-H

Size	1.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	13MHHMD1.5-H.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-DP-1-304
A, in.	2.122
A, mm.	53.9
Product Weight	0.66

Size	2
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	13MHHMD2.0-H.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-DP-2-304
A, in.	2.654
A, mm.	67.41
Product Weight	0.75

Size	2.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	13MHHMD2.5-H.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-DP-2.5-304
A, in.	3.185
A, mm.	80.9

Size	3
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	13MHHMD3.0-H.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-DP-3-304
A, in.	3.717
A, mm.	94.41
Product Weight	0.92

Size	4
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	13MHHMD4.0-H.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-DP-4-304
A, in.	4.82
A, mm.	122.43
Product Weight	1.1
