EG14R - Recessless Ferrule (Expanding)

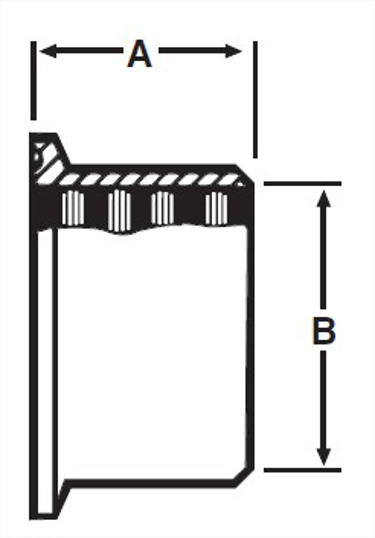

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	0.75	19.05	1	0.14
1.5	1.125	28.58	1.5	0.16
2	1.312	33.32	2	0.26
2.5	1.375	34.93	2.5	0.34
3	1.437	36.5	3	0.48
4	1.5	38.1	4	0.76

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-2-316
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.312
A, mm.	33.32
B, in.	2
Product Weight	0.26

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-2.5-316
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.375
A, mm.	34.93
B, in.	2.5
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-1-304
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	0.75
A, mm.	19.05
B, in.	1
Product Weight	0.14

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-1.5-304
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.125
A, mm.	28.58
B, in.	1.5
Product Weight	0.16

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-2-304
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.312
A, mm.	33.32
B, in.	2
Product Weight	0.26

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-2.5-304
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.375
A, mm.	34.93
B, in.	2.5
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-3-304
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.437
A, mm.	36.5
B, in.	3
Product Weight	0.48

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-4-304
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.5
A, mm.	38.1
B, in.	4
Product Weight	0.76

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-1-316
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	0.75
A, mm.	19.05
B, in.	1
Product Weight	0.14

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-1.5-316
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.125
A, mm.	28.58
B, in.	1.5
Product Weight	0.16

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14RMP-3-316
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.437
A, mm.	36.5
B, in.	3
Product Weight	0.48

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Roll On
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14RMP
Steel O’brien Part Number	14WMP-4-316
Wayland Part Number	W14RMP
Dixon Part Number	14RMP
Sanitary Solutions Part Number	SS14RMP
Sanitube Part Number	14RMP
A, in.	1.5
A, mm.	38.1
B, in.	4
Product Weight	0.76
