9 - Thread BS Cross

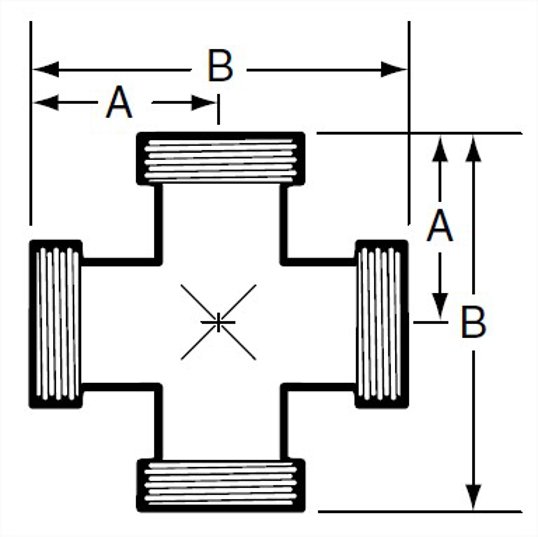

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	1.812	46.02	3.625	0.92
1.5	2.375	60.33	4.75	1.42
2	2.781	70.64	5.437	2.36
2.5	3.187	80.95	6.375	3.22
3	3.5	88.9	7	4.8
4	4.656	118.26	9.312	8.32

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	1.812
A, mm.	46.02
B, in.	3.625
Product Weight	0.92

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	2.375
A, mm.	60.33
B, in.	4.75
Product Weight	1.42

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	2.781
A, mm.	70.64
B, in.	5.437
Product Weight	2.36

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	3.187
A, mm.	80.95
B, in.	6.375
Product Weight	3.22

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	3.5
A, mm.	88.9
B, in.	7
Product Weight	4.8

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	4.656
A, mm.	118.26
B, in.	9.312
Product Weight	8.32

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	1.812
A, mm.	46.02
B, in.	3.625

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	2.375
A, mm.	60.33
B, in.	4.75

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	2.781
A, mm.	70.64
B, in.	5.437

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	3.187
A, mm.	80.95
B, in.	6.375

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	3.5
A, mm.	88.9
B, in.	7

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9
Wayland Part Number	W9
Dixon Part Number	B9
Sanitary Solutions Part Number	SS9
Sanitube Part Number	9
A, in.	4.656
A, mm.	118.26
B, in.	9.312
