E15HRI - Female E-Line by Rubber Hose Adapter

E15HRI - Female E-Line by Rubber Hose Adapter

Material Type
Size

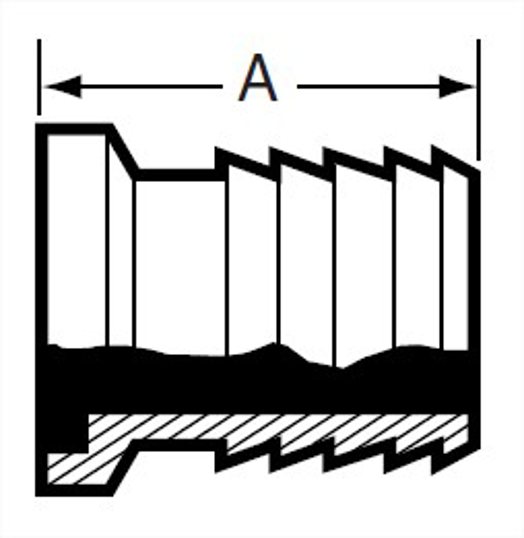

View Dimensions

Dimensions

E15HRI - Female E-Line by Rubber Hose Adapter

OD Tube Size	A, in.	A, mm.	Product Weight
1	3.75	95.25	0.44
1.5	3.937	100	0.48
2	4.062	103.17	0.62
2.5	4.125	104.78	1
3	4.187	106.35	1.22
4	4.375	111.13	1.84
6	9.125	231.78	--

Close

	VNE part number
OD Tube Size	304	316L
1	E15HRI1.0	E15HRI-6L1.0
1.5	E15HRI1.5	E15HRI-6L1.5
2	E15HRI2.0	E15HRI-6L2.0
2.5	E15HRI2.5	E15HRI-6L2.5
3	E15HRI3.0	E15HRI-6L3.0
4	E15HRI4.0	E15HRI-6L4.0
6	E15HRI6.0	E15HRI-6L6.0

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15HRI1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.44

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15HRI1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.937
A, mm.	100
Product Weight	0.48

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15HRI2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17
Product Weight	0.62

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15HRI2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.125
A, mm.	104.78
Product Weight	1

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15HRI3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.187
A, mm.	106.35
Product Weight	1.22

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15HRI4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.375
A, mm.	111.13
Product Weight	1.84

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	9.125
A, mm.	231.78

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E15HRI2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.125
A, mm.	104.78
Product Weight	1

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E15HRI3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.187
A, mm.	106.35
Product Weight	1.22

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E15HRI4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.375
A, mm.	111.13
Product Weight	1.84

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	9.125
A, mm.	231.78

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E15HRI1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	0.44

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E15HRI1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.937
A, mm.	100
Product Weight	0.48

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Hose Barb
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E15HRI2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17
Product Weight	0.62
