7A - Thread BS X Thread BS X Plain BS w/13H Nut Tee

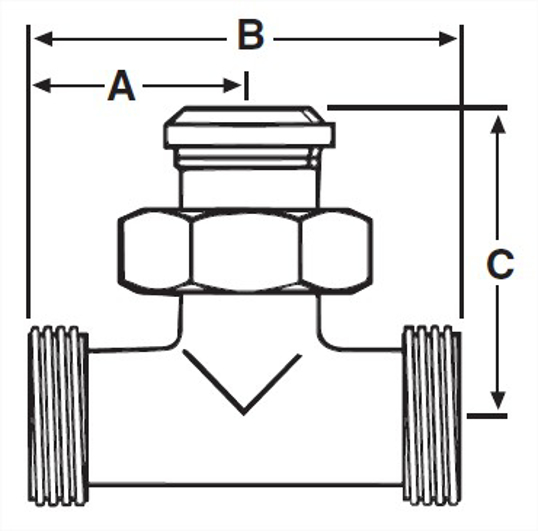

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.
1	1.812	46.02	3.625	2.5	63.5
1.5	2.375	60.33	4.75	3.125	79.38
2	2.781	70.64	5.437	3.562	90.47
2.5	3.187	80.95	6.375	4.062	103.17
3	3.5	88.9	7	4.312	109.52
4	4.656	118.26	9.312	5.375	136.53

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	1.812
A, mm.	46.02
B, in.	3.625
C, in.	2.5
C, mm.	63.5

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	2.375
A, mm.	60.33
B, in.	4.75
C, in.	3.125
C, mm.	79.38

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	2.781
A, mm.	70.64
B, in.	5.437
C, in.	3.562
C, mm.	90.47

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	3.187
A, mm.	80.95
B, in.	6.375
C, in.	4.062
C, mm.	103.17

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	3.5
A, mm.	88.9
B, in.	7
C, in.	4.312
C, mm.	109.52

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	4.656
A, mm.	118.26
B, in.	9.312
C, in.	5.375
C, mm.	136.53

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	1.812
A, mm.	46.02
B, in.	3.625
C, in.	2.5
C, mm.	63.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	2.375
A, mm.	60.33
B, in.	4.75
C, in.	3.125
C, mm.	79.38

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	2.781
A, mm.	70.64
B, in.	5.437
C, in.	3.562
C, mm.	90.47

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	3.187
A, mm.	80.95
B, in.	6.375
C, in.	4.062
C, mm.	103.17

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	3.5
A, mm.	88.9
B, in.	7
C, in.	4.312
C, mm.	109.52

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7A
Wayland Part Number	W7A
Dixon Part Number	B7A
Sanitary Solutions Part Number	SS7A
Sanitube Part Number	7A
A, in.	4.656
A, mm.	118.26
B, in.	9.312
C, in.	5.375
C, mm.	136.53
