E17WW - Weld X Schedule 10 Transition Piece

E17WW - Weld X Schedule 10 Transition Piece

Material Type
Size

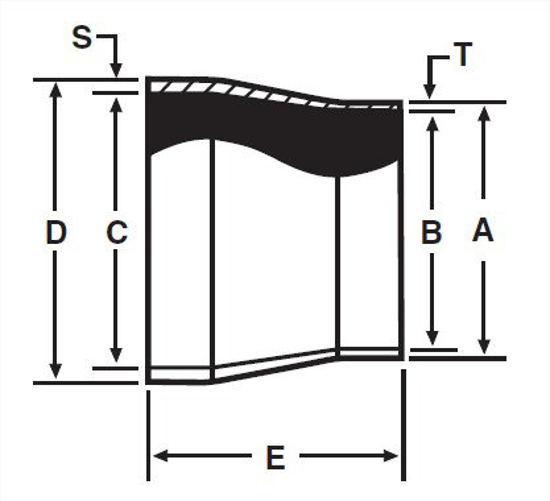

View Dimensions

Dimensions

E17WW - Weld X Schedule 10 Transition Piece

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	E, in.	E, mm.	S, in.	S, mm.	T Nom Wall, in.	Product Weight
0.5	0.5	12.7	0.37	0.674	17.12	0.84	21.34	1	25.4	0.083	2.11	0.065	0.005
0.75	0.75	19.05	0.62	0.884	22.45	1.05	26.67	1	25.4	0.083	2.11	0.065	0.063
1	1	25.4	0.87	1.097	27.86	1.315	33.4	1	25.4	0.109	2.77	0.065	0.211
1.5	1.5	38.1	1.37	1.682	42.72	1.9	48.26	1.5	38.1	0.109	2.77	0.065	0.211
2	2	50.8	1.87	2.157	54.79	2.375	60.33	1.5	38.1	0.109	2.77	0.065	--
2.5	2.5	63.5	2.37	2.635	66.93	2.875	73.03	1.5	38.1	0.12	3.05	0.065	--
3	3	76.2	2.87	3.26	82.8	3.5	88.9	2	50.8	0.12	3.05	0.065	0.57
4	4	101.6	3.834	4.26	108.2	4.5	114.3	2	50.8	0.12	3.05	0.083	0.844
6	6	152.4	5.782	6.357	161.47	6.625	168.28	3	76.2	0.134	3.4	0.109	2.102

Close

	VNE part number
OD Tube Size	316L
0.5	E17WW6L.5XSCH10
0.75	E17WW6L.75XSCH10
1	E17WW6L1.0XSCH10
1.5	E17WW6L1.5XSCH10
2	E17WW6L2.0XSCH10
2.5	E17WW6L2.5XSCH10
3	E17WW6L3.0XSCH10
4	E17WW6L4.0XSCH10
6	E17WW6L6.0XSCH10

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1
A, mm.	25.4
B, in.	0.87
C, in.	1.097
C, mm.	27.86
D, in.	1.315
D, mm.	33.4
E, in.	1
E, mm.	25.4
S, in.	0.109
S, mm.	2.77
T Nom Wall, in.	0.065
Product Weight	0.211

Material Type	316L
Size	0.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW.5XSCH10.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
B, in.	0.37
C, in.	0.674
C, mm.	17.12
D, in.	0.84
D, mm.	21.34
E, in.	1
E, mm.	25.4
S, in.	0.083
S, mm.	2.11
T Nom Wall, in.	0.065
Product Weight	0.005

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
B, in.	1.37
C, in.	1.682
C, mm.	42.72
D, in.	1.9
D, mm.	48.26
E, in.	1.5
E, mm.	38.1
S, in.	0.109
S, mm.	2.77
T Nom Wall, in.	0.065
Product Weight	0.211

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	1.87
C, in.	2.157
C, mm.	54.79
D, in.	2.375
D, mm.	60.33
E, in.	1.5
E, mm.	38.1
S, in.	0.109
S, mm.	2.77
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW2.5XSCH10.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
B, in.	2.37
C, in.	2.635
C, mm.	66.93
D, in.	2.875
D, mm.	73.03
E, in.	1.5
E, mm.	38.1
S, in.	0.12
S, mm.	3.05
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	3.26
C, mm.	82.8
D, in.	3.5
D, mm.	88.9
E, in.	2
E, mm.	50.8
S, in.	0.12
S, mm.	3.05
T Nom Wall, in.	0.065
Product Weight	0.57

Material Type	316L
Size	0.75
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW.75XSCH10.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	0.62
C, in.	0.884
C, mm.	22.45
D, in.	1.05
D, mm.	26.67
E, in.	1
E, mm.	25.4
S, in.	0.083
S, mm.	2.11
T Nom Wall, in.	0.065
Product Weight	0.063

Material Type	316L
Size	4
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW4.0XSCH10.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4
A, mm.	101.6
B, in.	3.834
C, in.	4.26
C, mm.	108.2
D, in.	4.5
D, mm.	114.3
E, in.	2
E, mm.	50.8
S, in.	0.12
S, mm.	3.05
T Nom Wall, in.	0.083
Product Weight	0.844

Material Type	316L
Size	6
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW6.0XSCH10.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6
A, mm.	152.4
B, in.	5.782
C, in.	6.357
C, mm.	161.47
D, in.	6.625
D, mm.	168.28
E, in.	3
E, mm.	76.2
S, in.	0.134
S, mm.	3.4
T Nom Wall, in.	0.109
Product Weight	2.102

Click here to request 3D Step File
