Product configuration selected is not available or discontinued. Please review the chart below to see available product configurations or try to select a different material type/size option

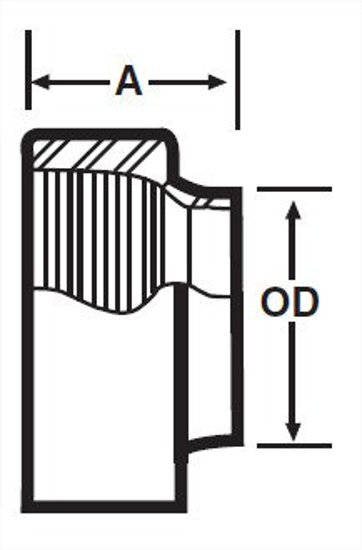

| OD Tube Size | Product Weight |
|---|---|
| 0.5 |
|
| 0.75 |
|
| 1 |
|
| 1.25 |
|
| 1.5 |
|
| 2 |
|
| 2.5 |
|
| 3 |
|
| 4 |
|
| VNE part number | ||
|---|---|---|
| OD Tube Size | 304 | 316L |
| 0.5 | -- | 22WB-6L.5 |
| 0.75 | -- | 22WB-6L.75 |
| 1 | 22WB1.0 | 22WB-6L1.0 |
| 1.25 | -- | 22WB-6L1.25 |
| 1.5 | 22WB1.5 | 22WB-6L1.5 |
| 2 | 22WB2.0 | 22WB-6L2.0 |
| 2.5 | 22WB2.5 | 22WB-6L2.5 |
| 3 | 22WB3.0 | 22WB-6L3.0 |
| 4 | 22WB4.0 | 22WB-6L4.0 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 0.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 0.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.18 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 0.75 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 0.75 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.22 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 1 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.26 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 1.25 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 1.25 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.56 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 2 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.66 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 2.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.86 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 3 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 2.02 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 4 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 3.04 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 1 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.26 |
| Material Type | 304 |
| Size | 1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Cad Model File | 22WB1.5.STEP |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.56 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 2 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.66 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 2.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 0.86 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 3 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 2.02 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 4 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Weld X Female NPT |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Catalog File | Fittings Catalog.pdf |
| Alfa Laval Part Number | 22WB |
| Wayland Part Number | W22WB |
| Dixon Part Number | B22WB |
| Sanitary Solutions Part Number | SS22WB |
| Sanitube Part Number | 22WB |
| Product Weight | 3.04 |
