EG2K - Clamp 45 Degree Elbow

Material Type
Size

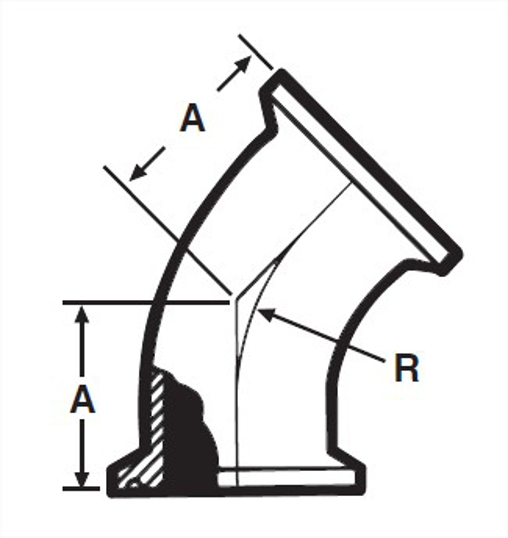

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	R, in.	Product Weight
1	1.125	28.58	1.5	0.36
1.5	1.437	36.5	2.25	0.32
2	1.75	44.45	3	0.46
2.5	2.062	52.37	3.75	0.66
3	2.375	60.33	4.5	0.94
4	3.125	79.38	6	1.94
6	4.625	117.48	9	5.9
8	5.312	134.92	12	--

	VNE part number
OD Tube Size	304	316L
1	EG2K1.0	EG2K-6L1.0
1.5	EG2K1.5	EG2K-6L1.5
2	EG2K2.0	EG2K-6L2.0
2.5	EG2K2.5	EG2K-6L2.5
3	EG2K3.0	EG2K-6L3.0
4	EG2K4.0	EG2K-6L4.0
6	EG2K6.0	EG2K-6L6.0
8	EG2K8.0	EG2K-6L8.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-1-304
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	1.125
A, mm.	28.58
R, in.	1.5
Product Weight	0.36

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-1.5-304
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	1.437
A, mm.	36.5
R, in.	2.25
Product Weight	0.32

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-2-304
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	1.75
A, mm.	44.45
R, in.	3
Product Weight	0.46

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-2.5-304
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	2.062
A, mm.	52.37
R, in.	3.75
Product Weight	0.66

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-3-304
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	2.375
A, mm.	60.33
R, in.	4.5
Product Weight	0.94

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-4-304
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	3.125
A, mm.	79.38
R, in.	6
Product Weight	1.94

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-6-304
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	4.625
A, mm.	117.48
R, in.	9
Product Weight	5.9

Material Type	304
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-8-304
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	5.312
A, mm.	134.92
R, in.	12

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-1-316
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	1.125
A, mm.	28.58
R, in.	1.5
Product Weight	0.36

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-1.5-316
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	1.437
A, mm.	36.5
R, in.	2.25
Product Weight	0.32

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-2-316
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	1.75
A, mm.	44.45
R, in.	3
Product Weight	0.46

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-2.5-316
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	2.062
A, mm.	52.37
R, in.	3.75
Product Weight	0.66

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-3-316
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	2.375
A, mm.	60.33
R, in.	4.5
Product Weight	0.94

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-4-316
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	3.125
A, mm.	79.38
R, in.	6
Product Weight	1.94

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-6-316
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	4.625
A, mm.	117.48
R, in.	9
Product Weight	5.9

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2K8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2KMP
Steel O’brien Part Number	2KMP-8-316
Wayland Part Number	W2KMP
Dixon Part Number	B2KMP
Sanitary Solutions Part Number	SS2KMP
Sanitube Part Number	2KMP
A, in.	5.312
A, mm.	134.92
R, in.	12
