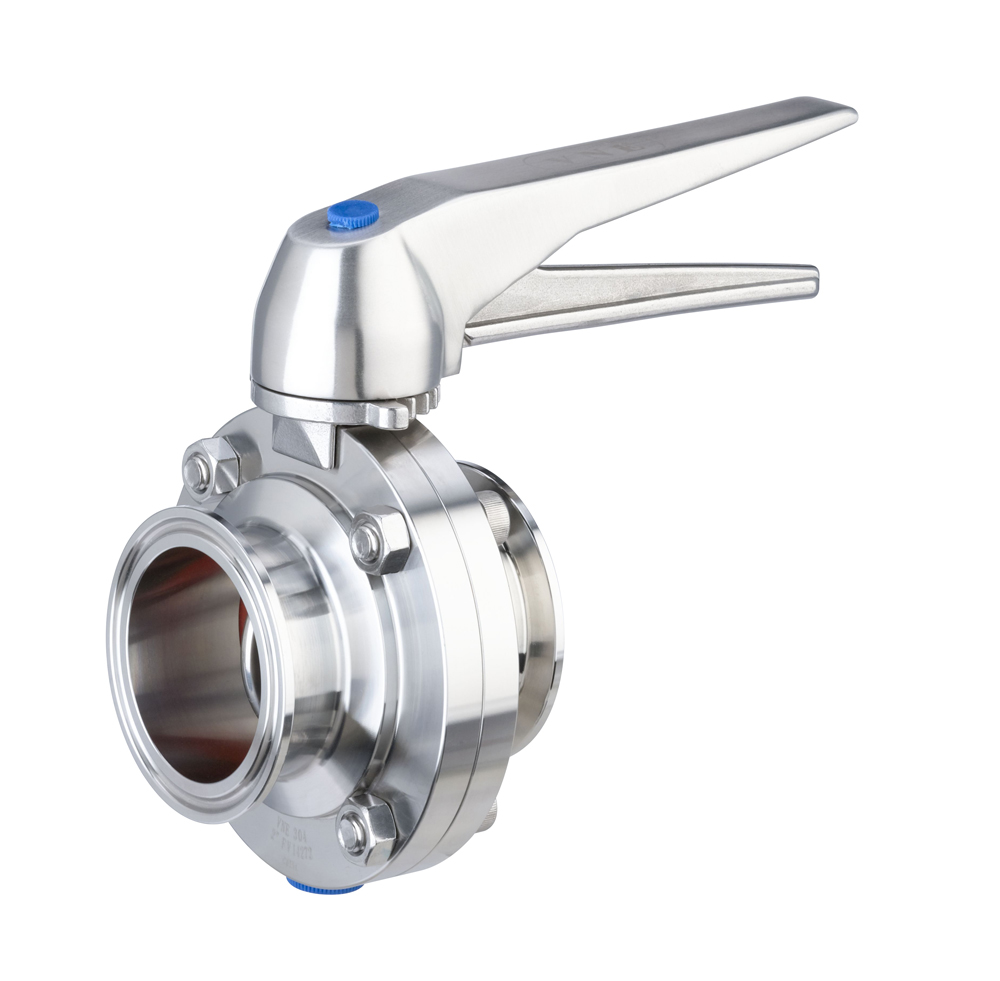

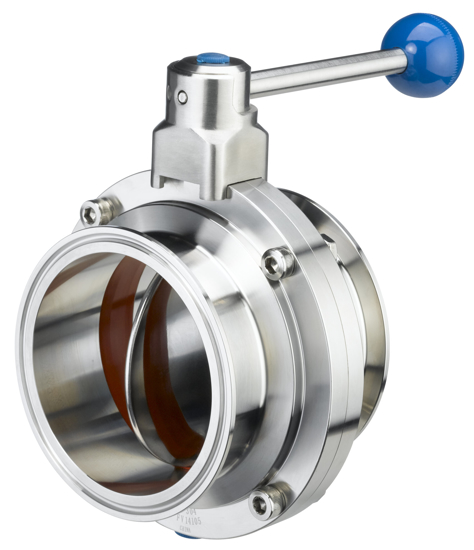

51C STH - Clamp End Manual Butterfly Valve Stainless Trigger Handle

Material Type
Size
Seat Material

View Dimensions

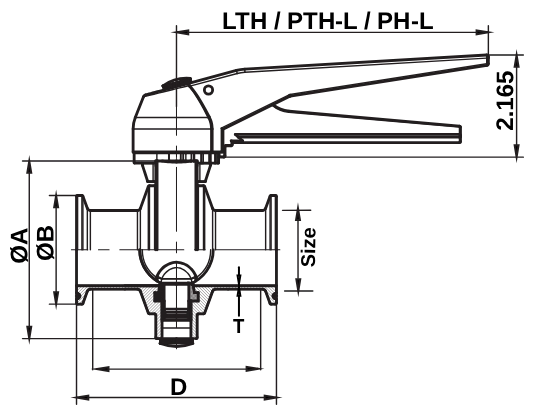

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.
1	3.071	78	1.988	2.598	65.99
1.5	3.386	86	1.988	2.756	70
2	3.937	100	2.519	2.992	76
2.5	4.528	115.01	3.051	3.15	80.01
3	5.04	128.02	3.582	3.307	84
4	6.063	154	4.685	4.094	103.99
6	8.858	224.99	6.567	5.118	130

EPDM

	VNE part number
OD Tube Size	304	316
1	51C1.0ME/STH	51C-61.0ME/STH
1.5	51C1.5ME/STH	51C-61.5ME/STH
2	51C2.0ME/STH	51C-62.0ME/STH
2.5	51C2.5ME/STH	51C-62.5ME/STH
3	51C3.0ME/STH	51C-63.0ME/STH
4	51C4.0ME/STH	51C-64.0ME/STH
6	51C6.0ME/PH	51C-66.0ME/PH

Silicone

	VNE part number
OD Tube Size	304	316
1	51C1.0MS/STH	51C-61.0MS/STH
1.5	51C1.5MS/STH	51C-61.5MS/STH
2	51C2.0MS/STH	51C-62.0MS/STH
2.5	51C2.5MS/STH	51C-62.5MS/STH
3	51C3.0MS/STH	51C-63.0MS/STH
4	51C4.0MS/STH	51C-64.0MS/STH
6	51C6.0MS/PH	51C-66.0MS/PH

Viton

	VNE part number
OD Tube Size	304	316
1	51C1.0MV/STH	51C-61.0MV/STH
1.5	51C1.5MV/STH	51C-61.5MV/STH
2	51C2.0MV/STH	51C-62.0MV/STH
2.5	51C2.5MV/STH	51C-62.5MV/STH
3	51C3.0MV/STH	51C-63.0MV/STH
4	51C4.0MV/STH	51C-64.0MV/STH
6	--	--

Material Type	304
Size	1
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1.988
D, in.	2.598
D, mm.	65.99

Material Type	304
Size	1
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1.988
D, in.	2.598
D, mm.	65.99

Material Type	304
Size	1
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1.988
D, in.	2.598
D, mm.	65.99

Material Type	316
Size	1
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1.988
D, in.	2.598
D, mm.	65.99

Material Type	316
Size	1
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1.988
D, in.	2.598
D, mm.	65.99

Material Type	316
Size	1
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.071
A, mm.	78
B, in.	1.988
D, in.	2.598
D, mm.	65.99

Material Type	304
Size	1.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.5M-STH.STEP
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.988
D, in.	2.756
D, mm.	70

Material Type	304
Size	1.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.5M-STH.STEP
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.988
D, in.	2.756
D, mm.	70

Material Type	304
Size	1.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.5M-STH.STEP
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.988
D, in.	2.756
D, mm.	70

Material Type	316
Size	1.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.5M-STH.STEP
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.988
D, in.	2.756
D, mm.	70

Material Type	316
Size	1.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.5M-STH.STEP
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.988
D, in.	2.756
D, mm.	70

Material Type	316
Size	1.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C1.5M-STH.STEP
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.988
D, in.	2.756
D, mm.	70

Material Type	304
Size	2
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2.519
D, in.	2.992
D, mm.	76

Material Type	304
Size	2
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2.519
D, in.	2.992
D, mm.	76

Material Type	304
Size	2
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2.519
D, in.	2.992
D, mm.	76

Material Type	316
Size	2
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2.519
D, in.	2.992
D, mm.	76

Material Type	316
Size	2
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2.519
D, in.	2.992
D, mm.	76

Material Type	316
Size	2
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.0M-STH.STEP
Catalog File	valves.pdf
A, in.	3.937
A, mm.	100
B, in.	2.519
D, in.	2.992
D, mm.	76

Material Type	304
Size	2.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.5M-STH.STEP
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	3.051
D, in.	3.15
D, mm.	80.01

Material Type	304
Size	2.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.5M-STH.STEP
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	3.051
D, in.	3.15
D, mm.	80.01

Material Type	304
Size	2.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.5M-STH.STEP
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	3.051
D, in.	3.15
D, mm.	80.01

Material Type	316
Size	2.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.5M-STH.STEP
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	3.051
D, in.	3.15
D, mm.	80.01

Material Type	316
Size	2.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.5M-STH.STEP
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	3.051
D, in.	3.15
D, mm.	80.01

Material Type	316
Size	2.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C2.5M-STH.STEP
Catalog File	valves.pdf
A, in.	4.528
A, mm.	115.01
B, in.	3.051
D, in.	3.15
D, mm.	80.01

Material Type	304
Size	3
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C3.0M-STH.STEP
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3.582
D, in.	3.307
D, mm.	84

Material Type	304
Size	3
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C3.0M-STH.STEP
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3.582
D, in.	3.307
D, mm.	84

Material Type	304
Size	3
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C3.0M-STH.STEP
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3.582
D, in.	3.307
D, mm.	84

Material Type	316
Size	3
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C3.0M-STH.STEP
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3.582
D, in.	3.307
D, mm.	84

Material Type	316
Size	3
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C3.0M-STH.STEP
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3.582
D, in.	3.307
D, mm.	84

Material Type	316
Size	3
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C3.0M-STH.STEP
Catalog File	valves.pdf
A, in.	5.04
A, mm.	128.02
B, in.	3.582
D, in.	3.307
D, mm.	84

Material Type	304
Size	4
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C4.0M-STH.STEP
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4.685
D, in.	4.094
D, mm.	103.99

Material Type	304
Size	4
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C4.0M-STH.STEP
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4.685
D, in.	4.094
D, mm.	103.99

Material Type	304
Size	4
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C4.0M-STH.STEP
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4.685
D, in.	4.094
D, mm.	103.99

Material Type	316
Size	4
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Viton
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C4.0M-STH.STEP
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4.685
D, in.	4.094
D, mm.	103.99

Material Type	316
Size	4
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	EPDM
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C4.0M-STH.STEP
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4.685
D, in.	4.094
D, mm.	103.99

Material Type	316
Size	4
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C4.0M-STH.STEP
Catalog File	valves.pdf
A, in.	6.063
A, mm.	154
B, in.	4.685
D, in.	4.094
D, mm.	103.99

Material Type	304
Size	6
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C 6.0MS.STEP
Catalog File	valves.pdf
A, in.	8.858
A, mm.	224.99
B, in.	6.567
D, in.	5.118
D, mm.	130

Material Type	304
Size	6
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C 6.0MS.STEP
Catalog File	valves.pdf
A, in.	8.858
A, mm.	224.99
B, in.	6.567
D, in.	5.118
D, mm.	130

Material Type	316
Size	6
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316
Seat-Material	EPDM
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C 6.0MS.STEP
Catalog File	valves.pdf
A, in.	8.858
A, mm.	224.99
B, in.	6.567
D, in.	5.118
D, mm.	130

Material Type	316
Size	6
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316
Seat-Material	Silicone
Handle Type	PH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	51C 6.0MS.STEP
Catalog File	valves.pdf
A, in.	8.858
A, mm.	224.99
B, in.	6.567
D, in.	5.118
D, mm.	130
