ISO X Tube Transition Adapter

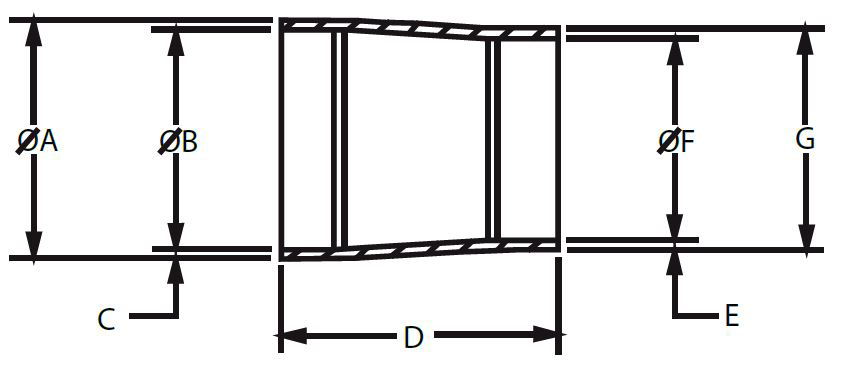

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	E, in.	E, mm.	F, in.	F, mm.	G, in.	G, mm.
ISO8X.5	0.53	13.5	0.41	0.06	1.6	1	25.4	0.065	1.65	0.37	9.4	0.5	12.7
ISO10X.75	0.75	19.05	0.62	0.06	1.6	1	25.4	0.06	1.6	0.55	14	0.68	17.2
ISO15X1.0	1	25.4	0.87	0.065	1.65	1	25.4	0.06	1.6	0.71	18.1	0.84	21.3
ISO20X1.0	1.06	26.9	0.93	0.065	1.65	1	25.4	0.065	1.65	0.87	22.1	1	25.4
ISO25X1.5	1.5	38.1	1.37	0.06	1.6	1.5	38.1	0.06	1.6	1.17	29.7	1.33	33.7
ISO32X1.5	1.67	42.4	1.51	0.065	1.65	1.5	38.1	0.065	1.65	1.37	34.8	1.5	38.1
ISO40X2.0	2	50.8	1.87	0.08	2	1.5	38.1	0.08	2	1.74	44.3	1.9	48.3
ISO50X2.5	2.5	63.5	2.37	0.065	1.65	1.5	38.1	0.08	2	2.22	56.3	2.37	60.3
ISO65X3.0	3	76.2	2.87	0.065	1.65	2	50.8	0.08	2	2.84	72.1	3	76.1
ISO80X3.0	3	76.2	2.87	0.065	1.65	2	50.8	0.09	2.3	3.32	84.3	3.5	88.9
ISO100X4.0	4.5	114.3	4.32	0.09	2.3	2	50.8	0.083	2.11	3.834	97.38	4	101.6

Cad Model File	Click here to request 3D Step File
Size	ISO8X.5
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO8X.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	0.53
A, mm.	13.5
B, in.	0.41
C, in.	0.06
C, mm.	1.6
D, in.	1
D, mm.	25.4
E, in.	0.065
E, mm.	1.65
F, in.	0.37
F, mm.	9.4
G, in.	0.5
G, mm.	12.7

Cad Model File	Click here to request 3D Step File
Size	ISO10X.75
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO10X.75
Wall Thickness	1.6
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	0.62
C, in.	0.06
C, mm.	1.6
D, in.	1
D, mm.	25.4
E, in.	0.06
E, mm.	1.6
F, in.	0.55
F, mm.	14
G, in.	0.68
G, mm.	17.2

Cad Model File	Click here to request 3D Step File
Size	ISO15X1.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO15X1.0
Wall Thickness	1.6
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	1
A, mm.	25.4
B, in.	0.87
C, in.	0.065
C, mm.	1.65
D, in.	1
D, mm.	25.4
E, in.	0.06
E, mm.	1.6
F, in.	0.71
F, mm.	18.1
G, in.	0.84
G, mm.	21.3

Cad Model File	Click here to request 3D Step File
Size	ISO20X1.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO20X1.0
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	1.06
A, mm.	26.9
B, in.	0.93
C, in.	0.065
C, mm.	1.65
D, in.	1
D, mm.	25.4
E, in.	0.065
E, mm.	1.65
F, in.	0.87
F, mm.	22.1
G, in.	1
G, mm.	25.4

Cad Model File	Click here to request 3D Step File
Size	ISO25X1.5
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO25X1.5
Wall Thickness	1.6
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
B, in.	1.37
C, in.	0.06
C, mm.	1.6
D, in.	1.5
D, mm.	38.1
E, in.	0.06
E, mm.	1.6
F, in.	1.17
F, mm.	29.7
G, in.	1.33
G, mm.	33.7

Cad Model File	Click here to request 3D Step File
Size	ISO32X1.5
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO32X1.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	1.67
A, mm.	42.4
B, in.	1.51
C, in.	0.065
C, mm.	1.65
D, in.	1.5
D, mm.	38.1
E, in.	0.065
E, mm.	1.65
F, in.	1.37
F, mm.	34.8
G, in.	1.5
G, mm.	38.1

Cad Model File	Click here to request 3D Step File
Size	ISO40X2.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO40X2.0
Wall Thickness	2
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	1.87
C, in.	0.08
C, mm.	2
D, in.	1.5
D, mm.	38.1
E, in.	0.08
E, mm.	2
F, in.	1.74
F, mm.	44.3
G, in.	1.9
G, mm.	48.3

Cad Model File	Click here to request 3D Step File
Size	ISO50X2.5
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO50X2.5
Wall Thickness	2
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
B, in.	2.37
C, in.	0.065
C, mm.	1.65
D, in.	1.5
D, mm.	38.1
E, in.	0.08
E, mm.	2
F, in.	2.22
F, mm.	56.3
G, in.	2.37
G, mm.	60.3

Cad Model File	Click here to request 3D Step File
Size	ISO65X3.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO65X3.0
Wall Thickness	2
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	0.065
C, mm.	1.65
D, in.	2
D, mm.	50.8
E, in.	0.08
E, mm.	2
F, in.	2.84
F, mm.	72.1
G, in.	3
G, mm.	76.1

Cad Model File	Click here to request 3D Step File
Size	ISO65X3.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO65X3.0
Wall Thickness	2.3
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	0.065
C, mm.	1.65
D, in.	2
D, mm.	50.8
E, in.	0.09
E, mm.	2.3
F, in.	2.81
F, mm.	71.5
G, in.	3
G, mm.	76.1

Cad Model File	Click here to request 3D Step File
Size	ISO80X3.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO80X3.0
Wall Thickness	2.3
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	0.065
C, mm.	1.65
D, in.	2
D, mm.	50.8
E, in.	0.09
E, mm.	2.3
F, in.	3.32
F, mm.	84.3
G, in.	3.5
G, mm.	88.9

Cad Model File	Click here to request 3D Step File
Size	ISO100X4.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO100X4.0
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	4.5
A, mm.	114.3
B, in.	4.32
C, in.	0.09
C, mm.	2.3
D, in.	2
D, mm.	50.8
E, in.	0.083
E, mm.	2.11
F, in.	3.834
F, mm.	97.38
G, in.	4
G, mm.	101.6

Cad Model File	Click here to request 3D Step File
Size	ISO100X4.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO100X4.0
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
A, in.	4.5
A, mm.	114.3
B, in.	4.3
C, in.	0.1
C, mm.	2.6
D, in.	2
D, mm.	50.8
E, in.	0.083
E, mm.	2.11
F, in.	3.834
F, mm.	97.38
G, in.	4
G, mm.	101.6
