Product configuration selected is not available or discontinued. Please review the chart below to see available product configurations or try to select a different material type/size option

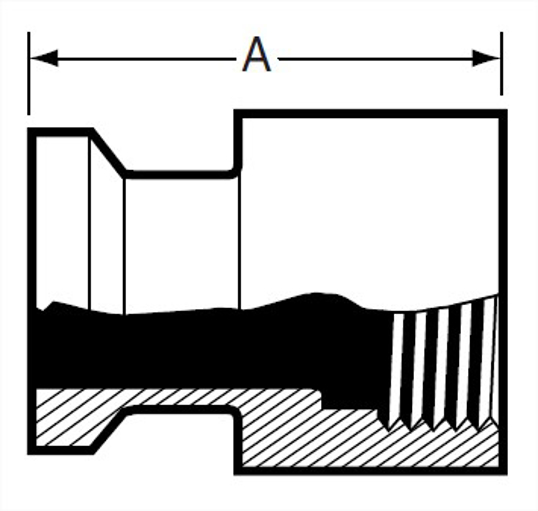

OD Tube Size | A, in. | A, mm. | Product Weight |
---|---|---|---|
1 |
|
|
|
1.5 |
|
|
|
2 |
|
|
|
2.5 |
|
|
|
3 |
|
|
|
4 |
|
|
|
VNE part number | ||
---|---|---|
OD Tube Size | 304 | 316L |
1 | E22I-15I1.0 | E22I-15I-6L1.0 |
1.5 | E22I-15I1.5 | E22I-15I-6L1.5 |
2 | E22I-15I2.0 | E22I-15I-6L2.0 |
2.5 | E22I-15I2.5 | E22I-15I-6L2.5 |
3 | E22I-15I3.0 | E22I-15I-6L3.0 |
4 | E22I-15I4.0 | E22I-15I-6L4.0 |
Material Type | 304 |
Size | 1 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | E22I-15I1.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.906 |
A, mm. | 48.41 |
Product Weight | 0.56 |
Material Type | 304 |
Size | 1.5 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | E22I-15I1.5.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 2.375 |
A, mm. | 60.33 |
Product Weight | 0.72 |
Material Type | 304 |
Size | 2 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | E22I-15I2.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 2.468 |
A, mm. | 62.69 |
Product Weight | 1.02 |
Material Type | 304 |
Size | 2.5 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | E22I-15I2.5.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 2.781 |
A, mm. | 70.64 |
Product Weight | 1.56 |
Material Type | 304 |
Size | 3 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | E22I-15I3.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 3.031 |
A, mm. | 76.99 |
Product Weight | 2.7 |
Material Type | 304 |
Size | 4 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | E22I-15I4.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 3.343 |
A, mm. | 84.91 |
Product Weight | 4.08 |
Material Type | 316L |
Size | 1 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | E22I-15I1.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.906 |
A, mm. | 48.41 |
Product Weight | 0.56 |
Material Type | 316L |
Size | 1.5 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | E22I-15I1.5.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 2.375 |
A, mm. | 60.33 |
Product Weight | 0.72 |
Material Type | 316L |
Size | 2 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | E22I-15I2.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 2.468 |
A, mm. | 62.69 |
Product Weight | 1.02 |
Material Type | 316L |
Size | 2.5 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | E22I-15I2.5.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 2.781 |
A, mm. | 70.64 |
Product Weight | 1.56 |
Material Type | 316L |
Size | 3 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | E22I-15I3.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 3.031 |
A, mm. | 76.99 |
Product Weight | 2.7 |
Material Type | 316L |
Size | 4 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Female E-Line X Female NPT |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | E22I-15I4.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 3.343 |
A, mm. | 84.91 |
Product Weight | 4.08 |
